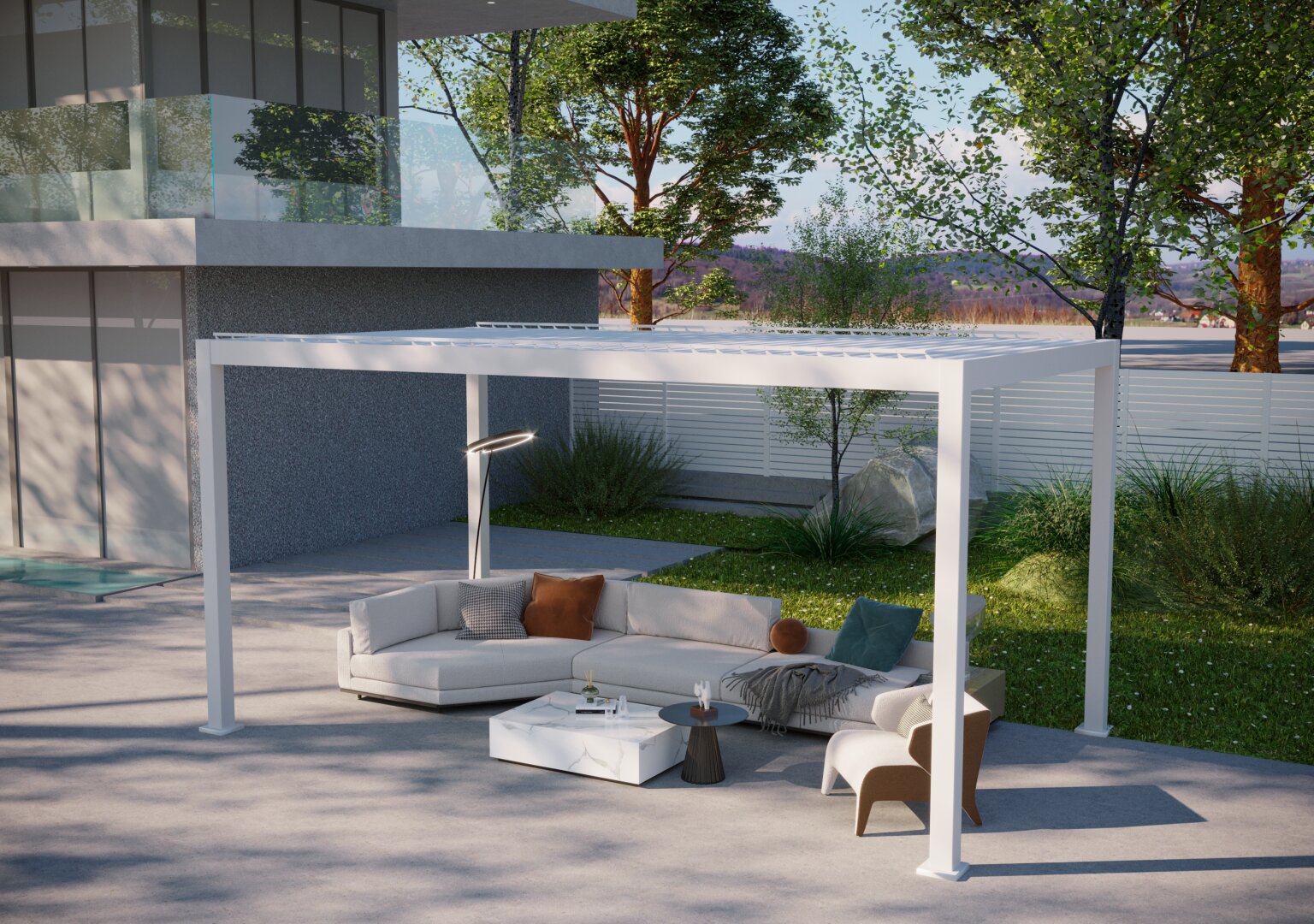

Motorized Louvered Roof Technology

Electric pergola systems engineered around motorized louvered roofs—precision-manufactured aluminum blades rotating 0-90° via tubular motors creating adjustable coverage impossible static structures, with engineering sophistication enabling weather protection, solar control, ventilation management, and architectural aesthetics through coordinated electromechanical systems requiring professional design, installation, and integration appropriate premium residential outdoor living applications.

Louver Blade Engineering

Dual-Wall Extrusion Design: Premium louver blades featuring sophisticated profiles—dual-wall construction (two parallel surfaces 3-4 inch spacing connected by internal webs creating hollow section), wall thickness 0.080-0.120 inch (2-3mm providing structural rigidity while minimizing weight), and internal ribbing (vertical or diagonal reinforcement preventing deflection under wind loading, water accumulation, or impact). Material: extruded 6061-T6 aluminum (310 MPa tensile strength, 276 MPa yield, corrosion resistance, powder coating compatibility), dimensions typically 3.5-4.5 inch width per blade, lengths 12-20 feet single-piece extrusions (matching pergola width, eliminating joints/seams weakness points), and blade spacing 16-24 inch on center (balancing coverage density with structural efficiency). EPDM rubber gaskets: ethylene propylene diene monomer synthetic rubber (weather resistant, UV stable, ozone resistant, -40°F to 250°F temperature range), 3-5mm thickness, 40-60 durometer hardness (compression resistance), and continuous sealing (extruded profiles bonded to blade edges, creating watertight closure when louvers 90° closed position). Overlap geometry: minimum 1-inch blade overlap adjacent louvers closed position (preventing water penetration if gasket compression incomplete), tapered edges (guiding rain runoff toward integrated gutters), and end dams (raised perimeter preventing water escape from sides).

Pivot Mechanism & Bearing System: Louver blades rotating via precision pivot assemblies—stainless steel shafts (corrosion resistant, 8-12mm diameter providing torsional strength), sealed ball bearings (preventing water/dust ingress, maintenance-free operation, <0.01 inch radial play), and aluminum mounting brackets (cast or machined components attaching shafts to pergola side rails). Linkage system: all blades mechanically connected (gear racks, chains, or direct coupling ensuring synchronized movement), single motor driving entire array (typically 12-16 louver blades 12×14 ft pergola), and adjustable positioning (any angle 0-90° infinitely variable within motor travel limits). Friction considerations: sealed bearings minimizing resistance (reducing motor torque requirements, extending lifespan, ensuring smooth operation), periodic lubrication access (maintenance ports or removable covers), and dust boots (protecting bearings from dirt accumulation outdoor environments). Engineering calculations: motor torque requirements based on blade weight (aluminum density, extrusion cross-section), wind loading (ASCE 7-22 specifications, 85+ MPH design wind speeds Los Angeles County), friction (bearing coefficients, linkage efficiency), and safety factors (2.0-3.0 typical, ensuring adequate capacity worst-case scenarios).

Tubular Motor Systems

Somfy Motor Specifications: Market-leading manufacturer providing range motor sizes—Sonesse 30 (15-20 Nm torque, smaller pergolas 10×12 to 12×14 ft), Sonesse 40 (25-30 Nm, standard residential 12×16 to 14×18 ft), and Sonesse 50 (35-40 Nm, large installations 16×20 to 18×24 ft). Physical dimensions: 50-70mm diameter (fitting within standard aluminum beam extrusions 4×6 to 6×6 inch), 400-600mm length (depending torque rating), and 3-6 kg weight (manageable single-person installation). Operational characteristics: 12-18 RPM speed (complete 90° louver travel 30-60 seconds), <45 dB noise (quieter than normal conversation, unobtrusive residential settings), 150-250 watt power consumption (single motor, drawing 1.25-2.1 amps 120V circuits), and duty cycle 4 minutes continuous operation per 20 minutes rest (thermal management preventing overheating extended use). Control options: hardwired switches (simple up/down/stop buttons), radio frequency remotes (RTS protocol, 433 MHz frequency, 65-foot range typical), smartphone apps (Somfy myLink/TaHoma hubs enabling Wi-Fi connectivity), and smart home integration (Alexa, Google, Control4, Crestron compatibility).

Nice & Cherubini Alternatives: Italian manufacturers offering comparable technology—Nice Era motors (15-35 Nm range, Era One wireless protocol, BiDi two-way communication enabling position feedback), Cherubini tubular motors (similar specifications, typically 10-15% lower cost Somfy, solid reliability). Performance parity: all major brands achieving similar operational characteristics (speed, noise, lifespan), differentiation primarily control protocols (proprietary wireless systems incompatible between brands requiring ecosystem commitment), and market positioning (Somfy premium pricing justified market dominance, authorized dealer network, comprehensive technical support; Nice/Cherubini value alternatives sacrificing some integration sophistication but delivering core functionality). Selection considerations: matching motor torque to pergola size/configuration (undersized motors struggling operation, premature failure; oversized motors unnecessarily expensive), control system compatibility (existing smart home infrastructure, desired automation level, budget constraints), and contractor expertise (Somfy installers most common, Nice/Cherubini requiring specialized dealers, affecting service availability long-term). Lifespan expectations: 25,000-50,000 cycle rating all major brands (representing 7-14 years 10 daily cycles, far exceeding typical 3-6 cycles residential usage patterns creating 12-25+ year realistic service life).

Motor Brand	Torque Range	Noise Level	Lifespan	Control Protocol	Market Position
Somfy	15-40 Nm	<45 dB	25,000-50,000 cycles	RTS/io radio	Premium (60-70% market share)
Nice	15-35 Nm	<45 dB	25,000-40,000 cycles	Era One wireless	Mid-premium (15-20% share)
Cherubini	15-30 Nm	<50 dB	20,000-35,000 cycles	Proprietary RF	Value (10-15% share)
Generic/Import	10-25 Nm	50-65 dB	10,000-20,000 cycles	Basic hardwired	Budget (5-10% share)

Electrical Infrastructure Requirements

Electric pergola installations necessitating comprehensive electrical systems—power distribution, control wiring, safety protection, and weatherproofing specifications meeting National Electrical Code (NEC) requirements, California amendments, and local jurisdiction enforcement through licensed C-10 contractor installation, permit acquisition, inspection approval, and long-term reliability appropriate outdoor residential applications exposing equipment to rain, temperature extremes, UV radiation, and mechanical stresses demanding robust engineering impossible DIY approaches lacking professional expertise, proper materials, and code knowledge.

Power Circuit Design

Dedicated Circuit Requirements: Electric pergola motors requiring isolated electrical circuits—not shared with other loads (preventing overload, nuisance tripping, voltage drop), 15-30 amp capacity (depending motor quantity: single motor 12×14 ft pergola adequate 15 amp, dual motors 16×20 ft requiring 20 amp, multiple motors large installations potentially 30 amp), and 120V AC supply (standard residential voltage, motors typically 115-125V operating range). Wire sizing: 14 AWG copper minimum 15 amp circuits (2.5mm² metric, adequate 1,800W load), 12 AWG 20 amp circuits (4.0mm² supporting 2,400W), and 10 AWG 30 amp (6.0mm² handling 3,600W)—based on NEC ampacity tables, 75°C conductor temperature rating, and 20% continuous load derating (motors potentially operating extended periods requiring capacity margin). Circuit protection: circuit breaker at main panel (15/20/30 amp matching wire gauge, providing overcurrent protection), GFCI protection mandatory (ground fault circuit interrupter detecting 4-6 milliamp leakage current, tripping within milliseconds preventing electrocution), and proper labeling (panel directory identifying "Motorized Pergola" or specific location enabling future troubleshooting, maintenance, emergency shutoff). Voltage drop considerations: maintaining <3% voltage drop from panel to motors (80 feet 12 AWG circuit adequate 20 amp load, longer runs requiring larger wire preventing motor undervoltage, poor performance, overheating).

GFCI Protection Implementation: Wet location exposure mandating ground fault protection—GFCI breaker at main panel (protecting entire circuit from source, recommended approach ensuring complete coverage), or GFCI receptacle at pergola (local protection, requiring weather-resistant outlet box, less common motorized applications hardwired connections), and testing requirements (monthly button test verification operation, automatic shutoff confirming functionality). GFCI sensitivity: 4-6 milliamp leakage threshold (detecting ground fault currents indicating electrical leakage through water paths, damaged insulation, or equipment defects), 25-40 millisecond response (faster than human nerve response preventing electrocution), and nuisance tripping potential (moisture infiltration, conductor insulation degradation, long circuit runs creating capacitive leakage requiring quality materials, proper installation minimizing false positives). Exception considerations: California Electrical Code permitting GFCI omission specific hardwired motor applications if equipment grounding adequate and inspector approval obtained—but best practice maintaining GFCI protection regardless code minimums ensuring maximum safety outdoor exposure conditions where water contact likelihood elevated versus indoor protected environments. Inspector expectations: Los Angeles County building departments typically requiring GFCI protection all outdoor electrical, questioning exemption requests, and favoring conservative interpretations prioritizing safety over convenience or cost considerations.

Control Wiring & Integration

Low-Voltage Command Signals: Tubular motors controlled via low-voltage wiring—24V or 48V DC typical (depending manufacturer specifications, Nice using 24V, Somfy 48V systems common), separate from 120V power supply (motors contain internal transformers stepping down voltage, isolating control circuits from line voltage), and simple three-wire configurations (common, up, down signals or polarity-reversing DC motors). Wire specifications: 18-22 AWG stranded copper (flexibility, vibration resistance), outdoor-rated jacket (sunlight resistant, moisture protection, temperature range -20°F to 150°F), and twisted-pair construction (reducing electromagnetic interference, improving signal integrity). Conduit protection: low-voltage wiring technically permitted without conduit NEC Article 725 Class 2 circuits, but best practice running conduit outdoor applications (physical protection from damage, animal intrusion, future wire replacement capability, professional appearance). Control switch mounting: weatherproof boxes (NEMA 4X minimum, stainless steel or corrosion-resistant plastic), convenient locations (near patio doors, integrated with outdoor lighting switches, multiple control points large properties), and clear labeling (identifying pergola controls distinguishing from lighting, fans, other systems). Wireless alternative: radio frequency remotes eliminating low-voltage wiring (Somfy RTS, Nice Era One protocols), simplifying installation (no wire routing between motors and controls), but requiring battery maintenance (remote controls, transmitters 1-2 year battery replacement), and potential interference (dense RF environments, metal obstructions, distance limitations 30-65 foot range typical).

Smart Home Integration Wiring: Comprehensive automation requiring additional infrastructure—Ethernet cabling (Cat6 minimum for hubs, controllers, PoE devices providing data and power single cable), Wi-Fi access points (ensuring strong signal pergola area, mesh systems extending coverage outdoor zones), and control system backbone (Control4/Crestron requiring proprietary wiring, consumer platforms using existing home network). Hub placement: Somfy myLink/TaHoma bridge (Wi-Fi connectivity enabling smartphone control, cloud services, voice integration), Nice IT4WiFi interface (similar functionality Nice ecosystem), or universal hubs (SmartThings, Hubitat integrating multiple protocols Z-Wave/Zigbee/Wi-Fi). Power requirements: hubs typically 5-15W consumption (USB or wall adapter powered, requiring accessible outlet near installation), PoE switches if Ethernet-powered devices (48V DC injected into network cables, eliminating separate power adapters), and UPS backup consideration (uninterruptible power supply maintaining operation during brief outages, enabling remote monitoring/control even temporary grid failures). Professional installation: smart home integrators (CEDIA certified installers, Control4/Crestron dealers) providing comprehensive programming (scenes, schedules, sensor automation), whole-home coordination (pergola operating in concert with lighting, HVAC, security, entertainment), and ongoing support (troubleshooting, updates, system modifications as technology evolves or homeowner needs change).

Automation Features & Programming

Electric pergola systems enabling sophisticated automated operation—environmental sensors detecting conditions, controllers executing programmed responses, and user interfaces providing manual override or scheduling capabilities creating outdoor spaces adapting dynamically to weather, time, usage patterns without constant homeowner intervention while maintaining full control when desired through layered automation architecture balancing convenience with flexibility appropriate residential applications.

Environmental Sensor Integration

Rain Detection Technology: Automated weather protection via rain sensors—capacitive sensors (measuring electrical capacitance changes when water present, detecting precipitation within 10-15 seconds onset), conductive sensors (two exposed metal contacts shorted by water creating electrical path triggering closure), and optical sensors (infrared beam disruption, most sophisticated but higher cost $200-400 versus $50-150 simpler technologies). Mounting location: top of pergola highest point (first area receiving precipitation, fastest detection), clear of overhangs or obstructions (avoiding false negatives sheltered locations missing rain), and accessible for cleaning (dust, pollen, bird droppings potentially interfering with sensitivity requiring periodic maintenance). Programming options: immediate closure upon detection (protecting furniture, electronics instantaneously), delayed response (10-30 second confirmation preventing false triggers from mist, sprinklers, adjacent activities), and user-defined override (manual open during light rain if homeowners accepting exposure, automatic protection only heavy precipitation). Sensitivity adjustment: calibrating sensor threshold (light drizzle versus moderate rain triggering response), regional climate considerations (Los Angeles infrequent rain potentially justifying aggressive protection even light precipitation, versus frequent-rain climates where constant triggering disruptive), and testing protocols (periodic verification using spray bottle, garden hose simulating rain confirming proper operation).

Wind Speed Monitoring: Anemometer sensors measuring wind velocity—cup anemometers (rotating mechanism converting wind speed to electrical signal, $150-400 commercial units), ultrasonic sensors (measuring sound wave travel time wind effect, more accurate but expensive $400-800), and pressure-based sensors (Pitot tubes, differential pressure indicating velocity, less common residential). Wind response programming: sustained velocity thresholds (opening louvers if 5-minute average exceeds 25 mph reducing structural loading), gust protection (peak velocity triggers regardless sustained average, 35+ mph gust requiring immediate opening), and hysteresis logic (different thresholds opening versus closing, preventing rapid cycling if wind hovering near trigger point). Safety priority: wind protection superseding other programming (rain sensor requesting closure while wind requires opening creates conflict—wind safety takes precedence accepting temporary water exposure over structural damage risk), manual override disabled high winds (preventing homeowner error keeping louvers closed during dangerous conditions), and visual/audible alerts (informing occupants of automatic wind response, potential need securing loose items, seeking shelter if extreme conditions). Los Angeles considerations: Santa Ana wind events (sustained 30-50 mph, gusts 60-80+ mph occurring 12-18 times annually October-April) demonstrating wind sensor value—automatic opening preventing pergola damage ($3,000-8,000 louver mechanism repair if wind forces closed pergola, $8,000-15,000 complete structural failure worst cases) justifying $300-600 anemometer installation cost through risk mitigation.

Programmable Scenes & Scheduling

Time-Based Automation: Scheduled louver positioning optimizing comfort and efficiency—morning opening (7-8 AM capturing pleasant temperatures, natural light, fresh air), midday closure (11 AM-4 PM blocking peak solar radiation reducing covered space temperatures 15-25°F), afternoon partial opening (4-6 PM as sun angle lowers, heat intensity decreases), and evening full opening (sunset onward enabling stargazing, radiative cooling, outdoor entertaining). Seasonal adjustment: winter schedule different summer (shorter closure periods, lower sun angle penetrating partial positions, potential all-day open maximizing passive solar heating), spring/fall intermediate (mild conditions requiring less aggressive protection, variable weather increasing sensor reliance versus fixed schedule), and automatic daylight saving time adjustment (controllers maintaining intended solar relationship versus clock time). Sunrise/sunset tracking: astronomical calculations determining local sunrise/sunset times (varying throughout year, latitude-dependent), programming relative to solar events ("close 2 hours after sunrise," "open at sunset") maintaining appropriate response regardless seasonal changes versus fixed clock times becoming misaligned. Calendar exceptions: holiday schedules (Thanksgiving, Christmas, New Year's extended family gatherings potentially overriding normal patterns), vacation mode (closing pergola when away, reopening before return, potentially randomizing operation appearance occupied deterring burglars), and special events (party hosting requiring manual control, temporarily disabling automation preventing unwanted adjustments during celebrations).

Scene Programming Examples: Coordinated system responses single command—"Morning Coffee" scene (louvers open 50%, patio lights off, soft background music, heaters off), "Afternoon Shade" (louvers closed 40°, ceiling fans medium speed, outdoor TV available, ambient lighting dimmed), "Dinner Party" (louvers open 75%, decorative lighting activated, speakers playing dinner jazz, heaters on if cool), and "Goodnight" (louvers fully closed, all lights/audio off, security system armed). Trigger methods: smartphone app buttons (one-tap activating scenes), voice commands ("Alexa, set pergola to dinner party"), scheduled automation (7 PM automatically activating evening scene), or sensor-driven (temperature dropping below 65°F triggering heater scene, rising above 95°F activating maximum cooling). Integration depth: comprehensive control systems (Control4, Crestron) coordinating pergola with indoor climate (closing outdoor louvers, adjusting indoor thermostats compensating, balancing energy usage), security systems (pergola closure indicating occupants away, departure routines including outdoor equipment), and entertainment (outdoor movie scene lowering louvers creating projection surface, activating sound system, dimming lighting appropriately). Consumer platforms: Google Home, Alexa, Apple HomeKit enabling simpler scenes (limited device types, basic logic, free smartphone apps versus $8,000-20,000 professional systems) appropriate homeowners prioritizing pergola automation without whole-home integration expense.

Installation Process & Code Compliance

Electric pergola installations requiring professional coordination—licensed contractors (C-27 Landscaping/structure, C-10 Electrical/motors), permit acquisition (building department, electrical permits separate), inspection sequence (foundation, framing, rough electrical, final), and code compliance verification ensuring legal operation, warranty protection, property value preservation versus unpermitted work creating liability, sale complications, potential removal orders discovered future transactions.

Contractor Licensing Requirements

Multi-Trade Coordination: Complete electric pergola project involving multiple license classifications—C-27 Landscaping contractor (structure design, aluminum fabrication, assembly, powder coating, but NOT electrical work or solid roofing), C-10 Electrical contractor (motor installation, wiring, control systems, testing, inspection approval mandatory), and potentially C-39 Roofing if solid materials (metal panels, shingles, though louvered systems not classified roofing). Prime contractor options: C-27 firm subcontracting C-10 electrical (common approach, single point responsibility homeowner, landscaping company coordinates trades), C-10 firm performing all work if properly licensed (electrical contractors increasingly offering complete pergola installations recognizing motorized systems essential electrical nature), or B General Contractor (coordinating all trades, appropriate complex projects involving multiple specialties, but potentially more expensive through additional management layer). Homeowner direct hiring: engaging separate C-27 and C-10 contractors (potentially saving 10-15% through eliminated markup, but requiring coordination, schedule management, warranty complications if problems arise—which trade responsible motor operation issues? electrical defects? structural inadequacies?). Recommended approach: single prime contractor (either C-27 or C-10 depending specialization) subcontracting complementary trades—clear responsibility, coordinated warranty, streamlined communication, professional project management justifying modest premium versus DIY coordination attempting savings creating confusion, delays, potential conflicts between trades blaming each other problems.

Permit Application & Processing: Los Angeles County jurisdictions requiring permits—building permit for structure (pergola >120 sq ft, fees $400-900 depending valuation), electrical permit separate (motorized systems, fees $200-500 regardless structure permit), and combined processing (applications submitted together or sequentially, coordinated plan review, inspection scheduling). Documentation: architectural drawings (site plan, elevations, structural details), electrical diagrams (circuit routing, motor locations, control wiring, panel modifications), and engineering calculations if required (structures >200 sq ft, hillside properties, non-standard designs necessitating stamped analysis licensed civil/structural engineer $800-2,500). Processing timeline: 3-6 weeks typical (varies by jurisdiction: Los Angeles City 3-4 weeks, Burbank 4-8 weeks design review, Glendale 3-6 weeks plan checking), with corrections potentially adding 1-2 weeks (addressing comments, resubmitting, second review). Expedited service: some municipalities offering fast-track ($200-400 additional fees, 2-3 week processing), but not universal (Burbank/Glendale no expedited options, Pasadena limited availability). Professional contractors: handling permit applications (included in project cost, leveraging established relationships with building departments, understanding local requirements expediting approvals), versus homeowners attempting DIY permitting (unfamiliarity with procedures, incomplete applications requiring corrections, extended timelines, potential rejection fundamental design flaws necessitating professional assistance ultimately costing more than initial contractor engagement).

Inspection Sequence & Approval

Foundation & Framing Inspections: Multi-stage verification process—foundation inspection (post footings exposed before concrete, verifying depth 18-24 inches, reinforcement #4 rebar, grade beams if required, proper spacing/alignment), requesting inspection after excavation but before pouring (24-48 hour notice typical, inspector arrival same-day or next-day, approval before proceeding), and corrections if deficiencies (inadequate depth, missing rebar, improper soil conditions requiring engineering consultation, remediation, re-inspection). Framing inspection: structure assembled (posts erected, beams installed, louver mechanisms mounted), electrical rough-in complete but not covered (wiring pulled, junction boxes installed, connections made, but finish trim/covers not yet applied), and comprehensive review (member sizing, connections via rated hardware, structural integration, code compliance). Common failures: inadequate fasteners (using generic bolts versus Simpson Strong-Tie rated connectors, insufficient quantity/spacing), improper wiring methods (missing junction boxes, inadequate wire support, wrong conduit type), and structural deficiencies (undersized beams, inadequate footings, improper louver support). Correction process: inspector issuing notice (listing deficiencies, providing correction guidance, requiring re-inspection after remediation), contractor addressing items (typically 1-3 days depending severity), and final approval (inspector verifying corrections, stamping plans, authorizing proceeding to electrical inspection).

Electrical & Final Sign-Off: C-10 contractor responsibility—electrical rough-in inspection (wiring methods, circuit protection, grounding, control systems before concealing), demonstrating proper installation (GFCI testing, voltage verification, wire sizing confirmation, weatherproof boxes), and inspector approval (authorizing covering wiring, proceeding to final). Final inspection: completed installation (motors installed, louvers operational, controls programmed, all trim/finishing complete), comprehensive testing (inspector observing louver operation, verifying safety features, checking sensor functionality, confirming proper labeling), and certificate of occupancy (final approval enabling legal use, closing permits, protecting future property sales from unpermitted work disclosure). Testing requirements: demonstrating full range motion (louvers opening/closing smoothly, no binding/interference), safety features (obstacle detection reversing motors if resistance, emergency stop functioning, manual override operation), and control functionality (remote operation, smartphone app if applicable, sensor responses appropriate). Final approval significance: completing permit record (Building & Safety archives showing legal installation, code compliance, professional execution), protecting property value (permitted improvements supporting appraisals, avoiding buyer concerns unpermitted work, eliminating title issues), and warranty activation (manufacturers typically requiring permitted installation authorized dealers, unpermitted work potentially voiding coverage even quality equipment).
