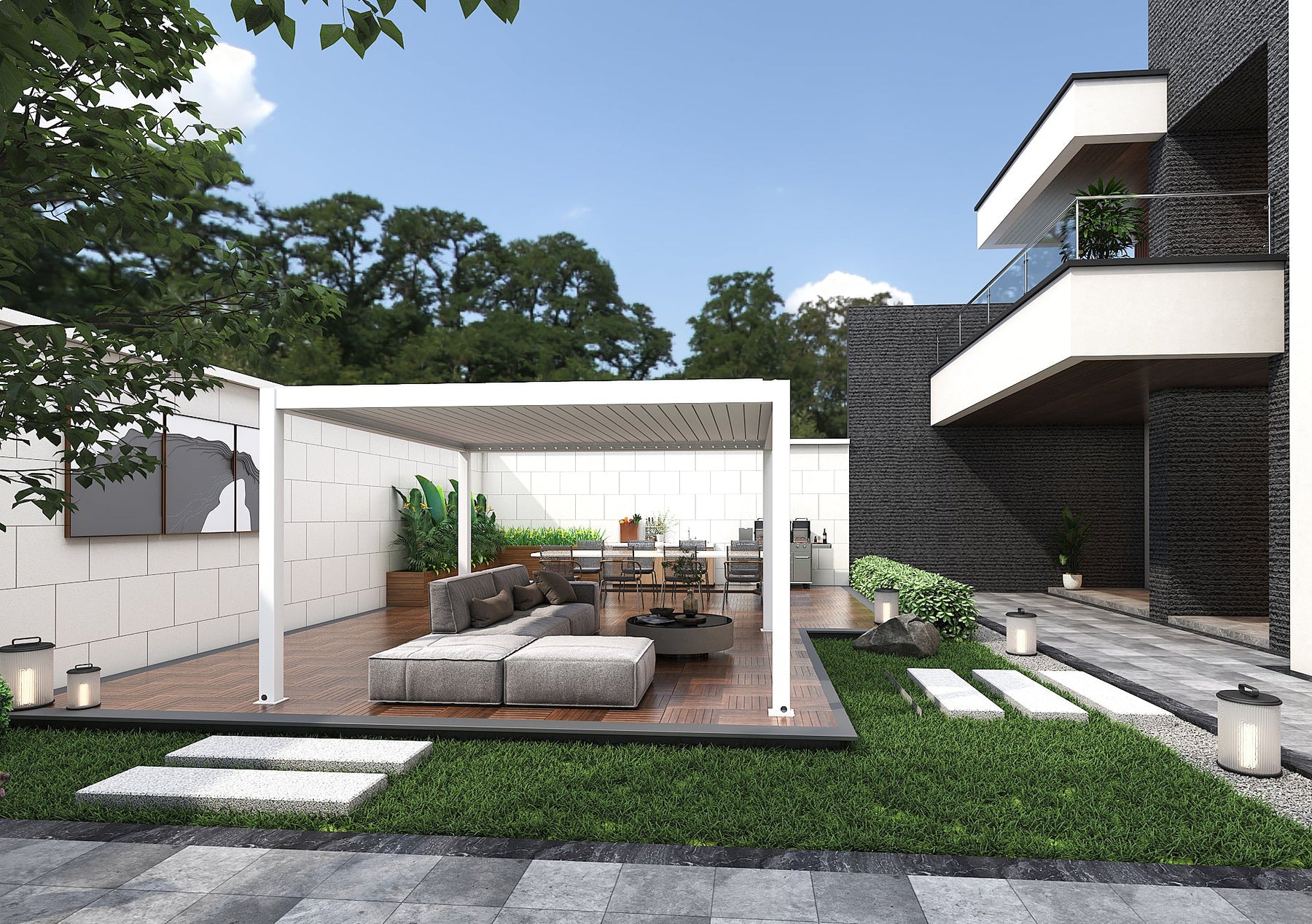

Retractable Pergola: The Complete Systems Comparison & Engineering Guide

Retractable System Architectures: Fabric vs. Louvered

Retractable pergolas encompass two fundamentally different engineering approaches solving the same problem—providing on-demand shade and weather protection—through contrasting mechanical principles, materials, and performance characteristics. Understanding these architectural differences enables informed selection matching Los Angeles climate requirements, usage patterns, and budget constraints.

Fabric Canopy Systems: Tensile Structure Engineering

Fabric retractable pergolas deploy weather-resistant textiles across fixed aluminum or steel frame structures, using motorized or manual mechanisms to extend and retract fabric panels. The engineering centers on tensile structure principles—maintaining proper fabric tension to prevent pooling, flapping, and premature wear while accommodating thermal expansion-contraction cycles.

Structural Components:

Perimeter Frame: Extruded aluminum (6061-T6 or 6063-T5) or powder-coated steel tubing forms fixed structural skeleton. Unlike louvered systems where frame supports rigid roof panels, fabric frame must resist cantilevered loads from extended fabric catching wind—requiring robust beam-to-post connections and foundation anchoring.

Track System: Fabric panels slide within aluminum tracks mounted to frame perimeter. Premium systems use ball-bearing rollers reducing friction and motor load; economy systems employ simple nylon glides wearing faster and requiring more motor force. Track alignment is critical—0.5° deviation over 12-foot span creates binding and premature fabric wear.

Fabric Panel: Marine-grade textiles engineered for outdoor exposure, typically solution-dyed acrylic (Sunbrella, Dickson, Recasens) or PVC-coated polyester. Panel dimensions limited by fabric width (54-72 inches typical roll width) requiring seaming for wider spans—seams represent potential failure points under wind loading.

Tensioning Mechanism: Springs, cables, or pneumatic cylinders maintain fabric tautness preventing sagging and water pooling. Proper tensioning is engineering challenge—too loose allows pooling (leading to collapse under water weight), too tight stresses fabric accelerating degradation and tearing at attachment points.

Actuation System: Manual crank (10-20 revolutions per foot of extension) or tubular motor (extending 12-foot span in 45-90 seconds). Motors require 120V electrical circuit, wireless remote control, and optional weather sensors for automatic retraction during high winds or rain.

According to Industrial Fabrics Association International testing standards, properly engineered fabric systems achieve wind resistance to 35 mph when fully extended, 55 mph when partially extended (50% coverage), but require full retraction beyond these thresholds to prevent structural damage. For Los Angeles's Santa Ana wind events reaching 50-70 mph gusts, this means fabric systems must be actively managed—retracted before wind events or equipped with automatic wind sensors triggering retraction.

Louvered Roof Systems: Rigid Panel Engineering

Louvered retractable pergolas employ rotating aluminum slats mounted on central pivot axes, using linear actuators or rack-and-pinion drives to adjust louver angle from fully open (maximum sun exposure and ventilation) through intermediate positions to fully closed (complete rain and sun protection). This rigid panel approach fundamentally differs from fabric's tensile structure, offering superior weather resistance and longevity at higher cost and complexity.

Structural Components:

Load-Bearing Frame: Heavy-gauge aluminum extrusions (6061-T6 specification critical for structural members) supporting louver panels, motors, and environmental loads. Frame must resist torsional loads from asymmetric louver operation and bending moments from concentrated motor forces—requiring engineering analysis beyond simple beam calculations.

Louver Panels: Extruded aluminum slats typically 4-8 inches wide, 0.080-0.125 inches thick, spanning 12-16 feet between supports. Premium systems use gasketed edges creating watertight seal when closed; economy systems leave 1-8mm gaps allowing light infiltration and water seepage. Panel thickness and alloy selection determine deflection under load—inadequate specifications cause visible sagging after 2-3 years.

Pivot Mechanism: Bronze or stainless steel bushings, sealed ball bearings, or composite bushings at each louver end enabling smooth rotation under motor power. Bearing quality determines system longevity—cheap bushings wear within 3-5 years causing louver binding and motor overload; premium bearings last 15-20+ years with minimal maintenance.

Drive System: Linear actuators (Cherubini, Nice) pushing louver linkages or rack-and-pinion motors (Somfy) driving gear assemblies. Multiple motors required for systems exceeding 12-14 feet width—synchronized operation critical to prevent louver binding from differential rotation rates.

Gutter Integration: Closed louver configuration creates continuous surface requiring drainage system channeling water through hollow posts to grade. Inadequate gutter design causes overflow during Los Angeles's concentrated winter rainfall (1-2 inches per hour intensity during atmospheric rivers)—water cascading over sides defeats rain protection purpose.

Premium louvered systems achieve 100% rain protection when closed (with proper gutter design), provide variable shade control through infinite louver positioning, and resist wind loads to 85-130 mph depending on engineering specifications. For Los Angeles applications facing Santa Ana conditions, louvered systems' inherent strength advantage over fabric proves decisive—they remain functional during wind events that would destroy extended fabric canopies.

Hybrid Configurations: Combining Both Technologies

Some premium pergola designs integrate both fabric and louvered systems, using louvered roof for primary weather protection and retractable fabric screens for side enclosure, providing comprehensive environmental control impossible with single-technology approaches.

A typical hybrid installation in Burbank might employ motorized louvered roof for rain protection and solar control, with retractable fabric screens on three sides blocking afternoon sun, wind, and visual privacy. Total cost $45,000-65,000 for 12×16 ft structure—premium pricing justified by maximum versatility and year-round usability.

Feature	Fabric Canopy	Louvered Roof	Hybrid System
Initial Cost (12×14 ft)	$12,000-18,000	$28,000-42,000	$42,000-60,000
Installation Time	1-2 days	3-5 days	5-7 days
Rain Protection	85-92% (light rain)	100% (with gutters)	100%
Wind Resistance	35 mph extended	85-130 mph closed	Varies by component
Lifespan	7-12 years (fabric)	25-35 years	25-35 years (frame)
Maintenance	Annual cleaning, fabric replacement	Annual lubrication	Both requirements
Shade Adjustability	Binary (open/closed)	Infinite (0-170°)	Maximum flexibility

Fabric Selection & Performance Characteristics

For fabric retractable systems, material selection determines UV protection, weather resistance, lifespan, and maintenance requirements. Los Angeles's 284 annual sunny days with UV Index 8-10 creates demanding exposure conditions separating premium fabrics from economy alternatives failing within 3-4 years.

Solution-Dyed Acrylic: The Premium Standard

Solution-dyed acrylic fabrics (Sunbrella being most recognized brand, also Dickson, Recasens, Para) incorporate pigment into acrylic polymer before fiber extrusion—color is integral to fiber structure rather than surface coating. This manufacturing process delivers superior colorfastness and UV resistance compared to piece-dyed or printed fabrics.

Performance Characteristics:

UV Resistance: Solution-dyed acrylics block 95-98% of UV radiation depending on color and weight. Darker colors (charcoal, navy, forest green) absorb more UV energy than light colors (beige, white, light gray) but both maintain rated protection throughout service life. The IFAI tests confirm acrylics retain >90% UV blocking capability after 1,000 hours accelerated weathering (equivalent to 3-5 years Southern California exposure).

Water Resistance: Acrylic fibers are naturally hydrophobic, shedding water rather than absorbing it. Factory-applied fluorocarbon treatments (similar to Scotchgard) enhance water repellency, causing rain to bead and roll off rather than soaking through. However, acrylics are not waterproof—heavy sustained rainfall (>0.5 inches/hour) penetrates fabric, making acrylic canopies suitable for sun protection and light rain but inadequate for serious weather protection.

Breathability: Open weave structure allows airflow preventing heat buildup underneath canopy. This breathability is critical in Los Angeles summer conditions where enclosed spaces reach 110-120°F under full sun—acrylic canopies maintain 15-25°F temperature reduction versus unshaded areas while allowing heat dissipation through fabric.

Mildew Resistance: Acrylic's synthetic polymer structure resists mold and mildew growth, unlike cotton canvas requiring biocide treatments. In Los Angeles's dry climate, mildew is minimal concern except in coastal areas (Santa Monica, Malibu) where marine moisture creates growth conditions. Even there, acrylic's inherent resistance combined with periodic cleaning maintains appearance without extensive maintenance.

Lifespan: Premium solution-dyed acrylics last 5-7 years in full Los Angeles sun exposure before visible fading and strength degradation warrant replacement. This compares favorably to 2-3 years for economy piece-dyed fabrics or 3-4 years for printed fabrics. Coastal installations facing salt spray may reduce lifespan 15-20% due to accelerated degradation.

Cost: Solution-dyed acrylic fabric costs $12-18 per square foot installed, with replacement fabric (not including labor) $8-12 per square foot. For 12×14 ft canopy (168 sq ft), initial fabric cost is $2,000-3,000, with replacement every 6-7 years adding $1,350-2,000 per cycle.

Sunbrella dominates premium market with 60+ years manufacturing history and extensive color/pattern selection (400+ options). However, Dickson (French manufacturer) and Recasens (Spanish) offer comparable performance at 10-15% lower cost—worthwhile alternatives for budget-conscious buyers.

PVC-Coated Polyester: Maximum Durability

PVC (polyvinyl chloride) coated polyester fabrics apply waterproof polymer coating to woven polyester base fabric, creating barrier preventing water penetration, UV degradation, and biological growth. These fabrics deliver superior weather protection and longevity compared to acrylics at 30-50% cost premium.

Performance Advantages:

True Waterproofing: PVC coating creates impermeable barrier—no water penetration even during sustained heavy rainfall. This transforms fabric canopy from "sun shade with light rain protection" to genuine outdoor room usable during Los Angeles's winter rainy season (December-March). PVC-coated systems enable outdoor dining, entertainment, and workspace functionality impossible with water-permeable acrylics.

Extended Lifespan: PVC coating shields polyester substrate from UV degradation and oxidation, extending serviceable life to 10-12 years in Los Angeles conditions—nearly double acrylic fabrics. The coating self-cleans during rain events, reducing maintenance burden. Coastal installations still see full decade lifespan even with salt exposure.

Superior Tensile Strength: Polyester base fabric provides higher tear strength than acrylic—important in high-wind events where extended canopy catches gusts. While both fabrics require retraction during Santa Ana conditions, PVC-coated polyester tolerates higher peak loads before tearing, providing additional safety margin if sudden wind develops before retraction.

Commercial Applications: PVC-coated fabrics dominate commercial installations (restaurants, hotels, event spaces) where daily-use durability, weather protection, and low maintenance justify premium pricing. Residential buyers seeking maximum longevity and weather resistance increasingly specify PVC despite higher cost.

Trade-Offs:

Higher Cost: PVC-coated polyester runs $18-25 per square foot installed—50% premium over solution-dyed acrylic. For 168 sq ft canopy, this represents $3,000-4,200 fabric cost versus $2,000-3,000 for acrylic. However, 10-12 year lifespan versus 5-7 years for acrylic nearly equalizes lifecycle costs.

Heat Retention: Impermeable coating traps heat underneath canopy more than breathable acrylic. Temperature differential drops to 10-15°F versus unshaded area compared to acrylic's 15-25°F reduction. In Los Angeles's 95°F+ summer temperatures, this heat retention becomes noticeable—PVC-coated canopies require integrated fans or strategic positioning for cross-ventilation.

Aesthetic Limitations: PVC-coated fabrics offer fewer color/pattern options than solution-dyed acrylics. The glossy surface appearance suits modern contemporary architecture but may clash with traditional or rustic design themes common in Pasadena bungalows or Spanish Colonial homes.

Environmental Concerns: PVC production and disposal raise environmental questions—chlorine-based polymers release dioxins during manufacturing and incineration. Environmentally-conscious buyers may prefer acrylic despite shorter lifespan. However, PVC's extended durability (fewer replacements over 30-year pergola structure life) partially offsets manufacturing impact.

Fabric Color Selection Strategy

Color choice impacts both aesthetics and functional performance—Los Angeles's intense sun exposure makes color selection more consequential than moderate climates:

Light Colors (White, Beige, Cream, Light Gray): Reflect 60-75% of solar radiation, maintaining cooler temperatures underneath canopy. Best choice for comfort during summer months when shaded area serves as primary living space. Light colors show dirt and staining more readily, requiring more frequent cleaning—relevant in Burbank/Glendale where seasonal Santa Ana winds deposit fine dust.

Medium Colors (Tan, Blue, Green, Terracotta): Balance heat reflection with stain concealment. Popular in Los Angeles market for combining reasonable solar performance with lower visible maintenance. These colors complement Spanish Colonial, Mediterranean, and Craftsman architectural styles dominant in Pasadena and Glendale historic districts.

Dark Colors (Charcoal, Navy, Brown, Forest Green): Absorb 75-85% of solar radiation, creating significantly hotter conditions underneath canopy—10-15°F warmer than light colors under identical conditions. Only suitable for applications where canopy provides visual privacy or aesthetic coordination with dark-colored architecture. Avoid dark colors for dining or entertainment areas used during afternoon hours.

Striped Patterns: Combine aesthetics of traditional awning stripes with practical color performance. Alternating light and dark stripes average solar absorption between colors—medium heat gain with visual interest. Sunbrella and Dickson offer dozens of stripe patterns from conservative navy/white to bold multi-color combinations.

For Los Angeles installations, Pergola Cave recommends light-to-medium colors (beige, light gray, tan, soft blue) balancing solar performance, architectural compatibility, and maintenance practicality. We discourage dark colors unless specifically requested for aesthetic reasons—functional disadvantages rarely justify visual preferences in 95°F summer conditions.

Motorization Technology & Automation Integration

While manual crank operation suffices for occasional-use pergolas, Los Angeles's year-round outdoor living culture and daily temperature cycling makes motorization practical necessity rather than luxury convenience. Understanding motor specifications, control options, and automation possibilities enables selecting systems matching usage patterns and smart home infrastructure.

Motor Specifications & Sizing

Retractable pergola motors fall into two categories: tubular motors for fabric systems and linear actuators for louvered systems, each with distinct sizing methodology and performance characteristics.

Tubular Motors (Fabric Systems):

Cylindrical motors typically 45-78mm diameter install inside roller tube around which fabric winds during retraction. Motor torque (measured in Newton-meters, Nm) must overcome fabric weight, wind resistance, and friction in track system.

Sizing Calculations: A 12×14 ft fabric canopy using solution-dyed acrylic weighs approximately 35-45 lbs. Add 25-30 lbs roller tube weight plus friction coefficient 1.3-1.5× for track resistance yields effective load 80-100 lbs (360-450 Newtons). With 2-inch radius roller (0.05m), required torque is 18-22 Nm. Standard practice specifies motor 30-40% above calculated requirement for longevity—thus 25-30 Nm motor appropriate for this application.

Common Sizes: 20 Nm (small canopies <100 sq ft), 30 Nm (medium 100-200 sq ft), 50 Nm (large 200-300 sq ft). Somfy, Nice, and Cherubini manufacture tubular motors across this range, with Somfy Orea 40 RTS (40 Nm) being workhorse for typical residential installations.

Duty Cycle: Motors rated for specific usage intensity—10% duty cycle means 6 minutes operation per hour maximum. Retractable canopy extending/retracting twice daily (4 minutes total) operates well within 10% rating. Commercial applications with frequent operation may require 30-50% duty cycle motors preventing overheating.

Linear Actuators (Louvered Systems):

Telescoping rod motors push louver linkages or drive rack-and-pinion assemblies, requiring thrust force rather than rotational torque calculations.

Force Requirements: Single 12-foot aluminum louver panel weighs 8-12 lbs, with pivot friction and windage adding effective weight. Multiply by number of panels (6-8 typical for 14-foot width) yields total load 60-100 lbs per motor. Add 40-50% safety factor yields 85-150 lb (380-670 N) thrust requirement per motor.

Common Specifications: Cherubini CA40 (1,000 N / 225 lb thrust), Nice TO5024 (800 N / 180 lb), Somfy J4 io (40 Nm rotational equivalent to ~400 N linear thrust). Premium louvered systems use 2-4 motors synchronized via electronic control eliminating single-point-of-failure risk.

Speed & Travel: Linear actuators extend 300-500mm (12-20 inches) at 5-15 mm/second velocity, rotating louvers through 135-170° arc in 30-60 seconds. Faster speeds increase mechanical stress accelerating wear; slower speeds frustrate users waiting for operation completion. 45-50 seconds from open to closed represents optimal balance.

Control Systems & User Interfaces

Motor operation requires control system interfacing user commands to motor power. Options range from simple wall switches to comprehensive smart home integration.

Wired Controls: Basic on-off-stop switches mounted at convenient location. Reliable and inexpensive ($50-100) but lack remote operation or automation capabilities. Suitable for pergolas adjacent to house where occupants can access switch, impractical for freestanding installations requiring walking to control point.

Handheld Remotes: Radio-frequency (RF) controllers communicating with motor receiver. Somfy RTS (Radio Technology Somfy), Nice Flo, and other proprietary protocols operate 50-150 foot range through walls and obstacles. Multi-channel remotes control multiple systems independently—useful for installations with separate fabric canopy and retractable screens. Cost $100-200 per remote.

Smart Home Integration: Bridge devices translate proprietary motor protocols into standard smart home languages (WiFi, Z-Wave, Zigbee, Thread) enabling control via smartphone apps, voice assistants (Alexa, Google Assistant, Siri), and automation platforms (Home Assistant, SmartThings, Apple HomeKit).

Somfy TaHoma gateway ($200-300) enables internet control of RTS motors through Somfy app or voice commands. Nice IntesisHome bridge provides similar capabilities for Nice-equipped systems. These gateways unlock sophisticated automation:

Schedule-Based Operation: Extend canopy automatically at 8 AM when morning sun clears neighbor's trees, retract at 6 PM when afternoon heat subsides. Los Angeles residents working from home appreciate automated pergola operation matching daily routines without manual intervention.

Weather-Responsive Automation: Integrate personal weather station or cloud-based weather data (Weather Underground, NOAA) triggering automatic retraction when wind exceeds 25 mph or rain detected. Critical in Los Angeles where Santa Ana wind events develop rapidly—automated protection prevents fabric damage during homeowner absence.

Scene Integration: "Outdoor Entertainment" scene extends pergola canopy, dims integrated LED lights to 40%, and starts outdoor speakers with single command. "Goodnight" scene retracts all systems, turns off lights, and locks doors preparing home for night.

Geofencing: Automatically retract pergola when homeowners leave property (detected via smartphone location), extend when returning home. Useful for properties left unoccupied during weekdays—ensuring pergola isn't extended during winds when no one present to monitor.

According to Parks Associates smart home research, 68% of premium pergola installations in 2025 included some form of smart control, up from 42% in 2022—indicating rapid adoption as homeowners recognize automation's convenience and protection value.

Weather Sensors & Protective Automation

Dedicated weather sensors provide more reliable automation triggers than internet-based weather data, responding to actual on-site conditions rather than forecasts or data from nearest weather station potentially miles away.

Wind Sensors: Anemometers measuring wind speed trigger automatic retraction when sustained winds exceed preset threshold (typically 20-25 mph for fabric systems, 40-50 mph for louvered). Mount sensor on roof or pole 10+ feet above pergola avoiding ground-level turbulence distorting readings. Cost $150-300 plus installation.

Rain Sensors: Heated pads detecting moisture accumulation close fabric canopies or louvers protecting outdoor furniture and preventing water pooling. Response time 10-30 seconds after rain begins—fast enough preventing significant water intrusion. Cost $80-150.

Sun Sensors: Photocells measuring solar intensity automatically extend canopy when sun exceeds threshold brightness (useful for morning automation) and retract at sunset. Less common in Los Angeles than wind/rain sensors given consistent daily sun patterns enabling schedule-based operation. Cost $100-200.

Multi-Sensor Stations: Integrated weather stations measuring wind, rain, sun, and temperature providing comprehensive data for sophisticated automation rules. Premium option ($400-600) justified for complex installations with multiple motorized systems requiring coordinated operation based on conditions.

Pergola Cave standard installations include wind and rain sensors on all motorized systems—not optional upgrades but integrated protection preventing damage during homeowner absence or overnight conditions. This preventive approach has reduced weather-damage service calls by 85% compared to systems lacking automated protection.

Los Angeles Climate Optimization Strategies

Southern California's Mediterranean climate—characterized by intense sun, low humidity, seasonal winds, concentrated winter rainfall, and minimal summer precipitation—creates specific optimization priorities differing from humid subtropical climates (Southeast U.S.), continental climates (Midwest), or marine climates (Pacific Northwest).

UV Protection as Primary Concern

Los Angeles's UV Index reaches 8-10 during March-October period (8 months annually), with peak readings exceeding 11 during summer solstice. This ultraviolet radiation intensity degrades outdoor fabrics, furniture, decking, and human skin at accelerated rates compared to moderate climates.

Retractable pergola UV protection delivers three distinct benefits:

Human Health Protection: The EPA SunWise Program recommends seeking shade during peak UV hours (10 AM - 4 PM). A properly positioned retractable pergola provides that shade zone during outdoor activities, reducing skin cancer risk for residents spending 2-4 hours daily outdoors (common in Los Angeles year-round outdoor living culture).

Furniture & Fabric Preservation: Outdoor furniture fabrics exposed to full Los Angeles sun fade visibly within single season, requiring replacement every 2-3 years. Pergola shade extends furniture life to 5-7 years—$2,000-4,000 savings over decade offsetting substantial portion of pergola cost.

Deck & Finish Protection: Composite decking, wood finishes, and painted surfaces degrade under UV exposure. Shaded areas maintain appearance 3-4× longer than unshaded areas—relevant in premium Pasadena and La Cañada properties where architectural finishes represent significant investment.

For UV protection priority, either fabric or louvered systems deliver adequate performance when properly positioned and operated. The key is ensuring shade coverage during peak UV hours rather than system type.

Heat Management in Mediterranean Climate

Los Angeles's dry heat (relative humidity typically 25-40% during summer) creates different thermal comfort challenges than humid climates. Shaded area with good ventilation achieves comfortable conditions impossible in humid regions where shade alone proves insufficient.

Ventilation Strategy: Louvered systems' adjustability enables optimal ventilation—louvers at 45-60° angle provide shade while allowing airflow. This ventilation prevents heat buildup underneath pergola, maintaining 20-25°F temperature reduction versus unshaded area.

Fabric canopies provide fixed ventilation based on fabric breathability. Acrylic's open weave allows reasonable airflow, but PVC-coated polyester's impermeable nature traps more heat. Fabric canopy installations benefit from ceiling fans creating air movement compensating for reduced natural ventilation.

Thermal Mass Interaction: Retractable systems enable strategic operation optimizing thermal mass effects. Extend canopy during morning/afternoon preventing patio surface from absorbing heat. Retract during evening allowing radiative cooling to night sky—opposite approach from keeping canopy extended continuously. This dynamic operation achieves lower evening temperatures enabling outdoor comfort extending to 10-11 PM during summer months.

Wind Event Management

Santa Ana wind events occur 10-15 days annually (typically October-December, occasionally February-April) with sustained winds 30-40 mph and gusts 50-70+ mph. These events damage or destroy extended retractable systems unless properly protected.

Fabric Systems: Must be fully retracted during Santa Ana conditions. Wind sensors triggering automatic retraction provide essential protection during homeowner absence. Manual-only systems risk damage if winds develop unexpectedly during work hours when no one home to retract canopy.

Louvered Systems: Engineered systems withstand Santa Ana winds when louvers open to 60-90° position—this reduces wind pressure 70-85% versus closed position by allowing wind to pass through rather than creating solid barrier. Weather automation opening louvers automatically during high winds protects structure while maintaining partial functionality.

Mixed Strategies: Some Los Angeles homeowners operate retractable systems conservatively—retracting fabric canopies or opening louvers completely October-December during Santa Ana season, accepting reduced functionality in exchange for eliminating damage risk. This seasonal approach reduces wear-and-tear extending overall system lifespan.

Winter Rain Protection

Los Angeles receives 85-90% of annual rainfall during December-March period, often in concentrated storms delivering 1-3 inches within 24-48 hours. Atmospheric river events can produce sustained rainfall exceeding 0.5 inches/hour for 6-12 hours.

Fabric Limitations: Solution-dyed acrylic fabrics shed light rain but become saturated during sustained heavy precipitation. Water weight (8.3 lbs/gallon × pooled area) stresses fabric and frame—potential collapse risk if drainage inadequate. Fabric canopies provide "light weather protection" suitable for shading outdoor furniture during brief showers but inadequate for serious weather protection.

Louvered Advantage: Properly engineered louvered systems with integrated gutters provide 100% rain protection, transforming outdoor space into all-weather room usable during winter months. For Los Angeles homeowners who entertain guests, work remotely, or use outdoor space as primary living area, this weather protection justifies louvered systems' 60-80% cost premium over fabric alternatives.

Hybrid Approach: Louvered roof for rain protection combined with retractable fabric side screens creates climate-controlled outdoor room. Close all elements during winter storms for complete protection, open partially during mild weather for ventilation, fully open during clear conditions for maximum openness—ultimate flexibility at premium cost.

Installation Requirements & Contractor Selection

Retractable pergola installation complexity varies dramatically between fabric and louvered systems, impacting contractor qualification requirements, installation timelines, and permit procedures in Burbank, Glendale, and Pasadena jurisdictions.

Fabric System Installation

Fabric retractable pergolas installation involves:

Day 1 - Foundation & Frame: Pour concrete footings (if required for freestanding installation) or mount wall brackets (for attached installation). Assemble aluminum frame, verify level and square, secure to foundations/walls. 2-3 person crew, 6-8 hours.

Day 2 - Canopy & Motor: Install track system, thread fabric through tracks verifying smooth operation, mount motor and controls, make electrical connections (for motorized systems), test operation through full extension-retraction cycles. 2-person crew, 4-6 hours.

Total installation 1-2 days depending on size and complexity. Electrical work requires California-licensed C-10 electrician—some fabric pergola installers lack electrical licensing, requiring homeowner separately contract electrician adding coordination complexity.

Permit Requirements: Burbank, Glendale, and Pasadena building departments typically classify fabric retractable pergolas as "awnings" requiring building permit for attached installations >50 sq ft or freestanding structures >120 sq ft. Permit fees $250-400, review period 7-10 business days for simple applications.

Structural calculations rarely required for fabric systems given light weight (20-30 lb/linear ft versus 80-120 lb/linear ft for louvered) and temporary nature (retracted during high winds). However, freestanding installations require foundation engineering verifying soil-bearing capacity and wind resistance.

Louvered System Installation

Louvered retractable pergolas demand substantially more complex installation:

Day 1 - Foundation: Excavate footings per engineered plans (typically 24-36 inch depth, 18-24 inch diameter), install rebar cages, pour concrete embedding post anchors. 3-person crew, 6-8 hours. Concrete requires 7-day cure before loading.

Day 2 - Structural Assembly: After concrete cure, erect main posts, install primary beams, position secondary rafters, verify level and alignment. Louvered systems' tighter tolerances (±2mm) versus fabric (±10mm) demand precision assembly. 3-4 person crew, 8-10 hours.

Day 3 - Louver Installation: Mount louver panels to pivot assemblies, install drive linkages or gear assemblies, verify louver operation through full rotation range, adjust for uniform movement. Requires aluminum fabrication expertise uncommon in general contractors. 2-3 person crew, 6-8 hours.

Day 4 - Motorization & Integration: Install linear actuators or rack-and-pinion motors, run electrical circuits from main panel, program control systems, integrate weather sensors, test automated operation. Requires C-10 electrical contractor. 2-person crew, 6-8 hours.

Day 5 - Gutter & Finishing: Install gutter system, connect downspouts through hollow posts, verify drainage, apply touch-up powder coating to any scratches from assembly, final cleaning. 2-person crew, 4-6 hours.

Total installation 4-6 days depending on size, complexity, and weather conditions. Larger crews can compress timeline but rarely below 3 full days given concrete cure requirements and multi-trade coordination.

Permit Requirements: All louvered systems require building permits in Burbank, Glendale, and Pasadena—no exceptions based on size. Engineered stamped calculations required addressing wind loads, seismic resistance, and foundation design. Electrical permit required for motorization. Combined fees $400-700, review period 15-25 business days for complete submittals.

Only CSLB-licensed contractors (Class B General Building or Class C-61/D28 Limited Structural) can legally install louvered pergolas exceeding $1,000 project value—essentially all motorized systems. Homeowners should verify license status via CSLB website before contracting, as unlicensed work forfeits all payment recovery rights under California Business & Professions Code 7031.

Contractor Qualification Indicators

Premium retractable pergola contractors demonstrate:

Manufacturer Certifications: Somfy, Nice, and premium fabric suppliers offer installer training and certification. Certified installers understand proper motor sizing, fabric tensioning, track alignment, and troubleshooting—technical knowledge unavailable to generic contractors installing first retractable pergola.

Portfolio Depth: 15-20+ completed retractable installations showing variety of sizes, systems (fabric and louvered), and feature complexity. Single-system contractors lack experience troubleshooting problems or optimizing designs for specific applications.

Local Permitting Experience: Contractors showing multiple Burbank, Glendale, or Pasadena permits understand municipal requirements, know building inspectors, achieve first-time approval rates >90%. Contractors from distant markets lacking local knowledge face longer timelines and permit correction cycles.

Electrical Licensing: In-house C-10 license or established relationships with electrical subcontractors. Contractors requiring homeowner separately contract electrician create coordination gaps and warranty ambiguity—if motor fails, is that installer's fault or electrician's fault?

Service Infrastructure: Retractable systems require periodic maintenance (fabric replacement, motor service, track cleaning) and occasional repair (fabric tears, motor failures, control system issues). Contractors with local service departments respond within 48-72 hours versus distant contractors lacking service infrastructure who may not return calls after final payment collected.

Pergola Cave maintains manufacturer certifications from Somfy, relationships with premium fabric suppliers (Sunbrella, Dickson), and in-house C-10 electrical licensing enabling turnkey installations from permit through final inspection. Our 10+ year local presence provides service infrastructure for warranty work and ongoing maintenance unavailable from transient contractors.
