Pergola with Lights: Complete LED Integration Guide
Topline
Integrated LED lighting systems transform pergolas from daytime shade structures into evening entertainment venues through layered illumination combining ambient overhead lighting (recessed fixtures or louver-integrated strips providing 20-40 lumens per sq ft general visibility), task lighting (focused downlights over dining/cooking areas delivering 40-60 lumens per sq ft), and accent elements (LED strips highlighting architectural features, landscape uplighting, decorative pendants). Professional installations ($3,500-8,500 for 12Ă14 ft pergola including fixtures, controls, and C-10 electrical work) specify weatherproof IP65+ rated components withstanding Los Angeles conditionsâminimal rainfall enabling exposed installations impossible in humid climates but intense UV requiring fade-resistant housing materials. Smart lighting control ($800-3,000 beyond basic switches) enables dimming, color temperature adjustment (2700K warm to 5000K cool white), scene programming, and smartphone/voice operation through Lutron, Control4, or manufacturer-specific systemsâcreating responsive environments adapting to activities from intimate dinners (20% dim warm white) to social gatherings (60% bright neutral) to late-night relaxation (ambient accent only).
Key Facts
- LED Efficiency: Modern LED fixtures consume 75-85% less energy than equivalent incandescent/halogen alternatives while delivering 50,000-100,000 hour service life (15-30 years at 4 hours daily use) versus 1,000-5,000 hours traditional bulbs according to Department of Energy testing standards
- Weatherproof Ratings: IP65 minimum specification (dust-tight, protected from water jets) required for pergola installationsâIP67/IP68 ratings (temporary immersion/continuous submersion protection) unnecessary for Los Angeles's dry climate but essential for humid coastal/tropical regions (NEMA)
- Color Temperature Impact: Warm white LEDs (2700-3000K) create intimate residential ambiance matching incandescent bulbs, neutral white (3500-4000K) provides balanced task lighting, cool white (5000-6000K) delivers clinical brightness appropriate for detailed work but psychologically uncomfortable for social settings (IES)
- Layered Lighting Benefits: Professional designs combine three illumination typesâambient (general visibility), task (focused work areas), accent (architectural/landscape highlighting)âcreating 40-60% greater perceived quality versus single-source overhead lighting per lighting design research (IALD)
- Smart Control ROI: Dimming capabilities reduce energy consumption 20-40% through operating lights at reduced output when full brightness unnecessary, while extending LED service life 2-3Ă through lower operating temperaturesâlifecycle savings justifying $800-2,000 control system premium (California Lighting Technology Center)
- Installation Costs: Complete integrated lighting ($3,500-8,500 for 12Ă14 ft pergola) includes fixtures ($1,200-3,500), licensed C-10 electrical work ($1,500-3,500), control systems ($800-2,000), significantly less than post-construction retrofits requiring exposed conduit and limited fixture placement options (NECA)
Layered Lighting Design Principles
Professional pergola lighting combines multiple illumination types creating depth, functionality, and aesthetic appeal impossible with single-source overhead fixtures. This layered approachâambient, task, and accent lightingâenables flexible environments adapting to different activities and times.
Ambient Lighting (Foundation Layer)
General illumination providing overall visibility enabling safe movement and basic activities. Ambient lighting establishes baseline brightness level upon which task and accent layers build.
Recessed LED Downlights: Flush-mounted fixtures integrated into pergola beam undersides or louver cavities provide even overhead illumination. Typical spacing 4-6 feet creates uniform coverage avoiding bright spots or dark zones. For 12Ă14 ft pergola, 6-9 recessed fixtures (each 800-1,200 lumens) deliver 20-40 lumens per sq ftâadequate for conversation, dining, and casual activities.

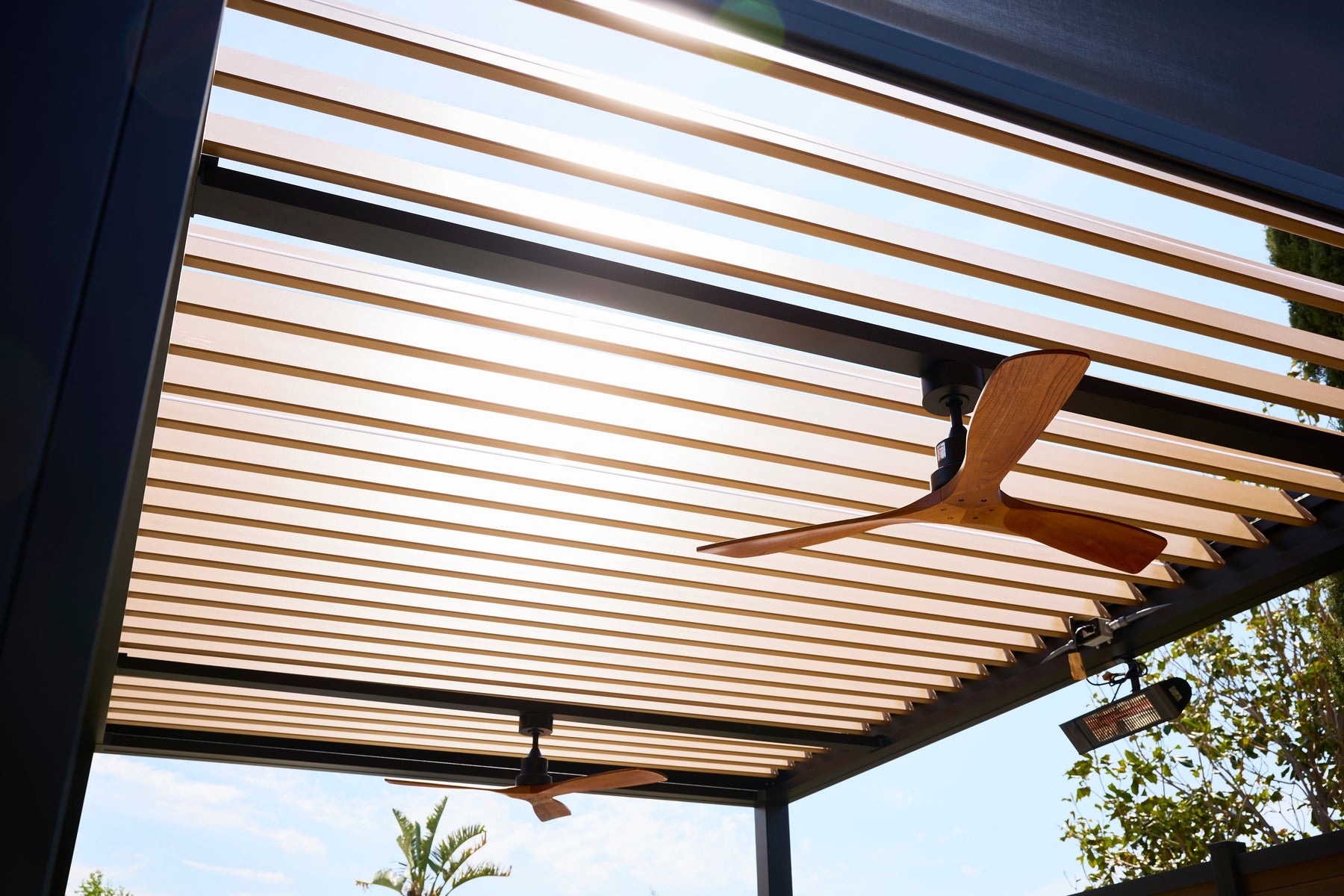

Louver-Integrated LED Strips: Premium louvered pergolas integrate LED strips within louver blade profilesâconcealed when louvers closed, creating dramatic uplighting when open. This architectural integration eliminates visible fixtures maintaining clean aesthetic while providing adjustable overhead illumination. Cost premium: $2,000-4,000 versus standard recessed fixtures.
Perimeter Strip Lighting: LED strips installed along beam edges or post capitals provide indirect ambient illuminationâlight reflecting off surfaces rather than direct exposure creating soft glow without glare. Appropriate for intimate settings prioritizing ambiance over task visibility.
Task Lighting (Functional Layer)
Focused illumination over specific activity areas requiring higher light levelsâdining tables, outdoor kitchens, bars, reading nooks. Task lighting delivers 40-60 lumens per sq ft versus 20-40 ambient enabling detailed activities.
Pendant Fixtures: Hanging lights suspended from pergola beams provide concentrated downlight over dining areas. Adjustable height positions light source 30-36 inches above table surface optimizing illumination without glare. Weatherproof outdoor pendants (Kichler, Hinkley, Progress Lighting) range $200-600 each; typical dining setup requires 2-3 fixtures.
Adjustable Recessed Spots: Gimbal-mounted LED fixtures allowing directional adjustment position light precisely over cooking surfaces, bars, or work areas. Narrow beam angles (25-40°) concentrate output creating 60-80 lumens per sq ft within targeted zone. Premium over standard fixed downlights: $40-80 per fixture.
Accent Lighting (Aesthetic Layer)
Decorative illumination highlighting architectural features, plants, artwork, or creating visual interest. Accent lighting operates independently from ambient/task layersâactivated selectively for entertaining or aesthetic enjoyment.
LED Strip Accent: Flexible strips (IP65+ rated, 12V or 24V DC) installed along post bases, beam edges, or rafter undersides create architectural highlighting. RGB color-changing strips enable mood variationâwarm amber for intimate settings, cool blue for modern aesthetic, color cycling for parties. Cost: $35-65 per 15-foot strip plus power supplies.
Landscape Uplighting: In-ground fixtures positioned around pergola perimeter illuminate surrounding landscapingâtrees, palms, architectural plantingsâcreating depth and visual layering extending illuminated zone beyond pergola footprint. Fixtures: $80-180 each, typical installation 4-8 fixtures.
| Lighting Type | Function | Output | Typical Fixtures | Cost |
|---|---|---|---|---|
| Ambient | General visibility | 20-40 lm/sq ft | 6-9 recessed 12W | $1,200-2,400 |
| Task | Activity areas | 40-60 lm/sq ft | 2-3 pendants/spots | $600-1,800 |
| Accent | Architectural/aesthetic | Variable | LED strips, uplights | $400-1,200 |
| Controls | Dimming/scenes | N/A | Smart switches/hub | $800-2,000 |
| Installation | C-10 electrical | N/A | Professional labor | $1,500-3,500 |
| Total | Complete system | Layered | 12Ă14 ft | $4,500-10,900 |
Smart Lighting Control Systems
Modern pergola lighting transcends manual switches through intelligent control systems enabling dimming, color adjustment, scene programming, and automationâcreating responsive environments adapting effortlessly to activities and preferences.
Dimming Technology
Variable light output provides flexibility impossible with on/off switchingâadjusting brightness matching activity requirements and time of day.
Phase-Cut Dimmers: Traditional dimmers (leading-edge or trailing-edge) work with many LED fixtures but compatibility varies by driver design. Verify LED fixtures specify "dimmable" and test with specific dimmer model preventing flickering, buzzing, or limited range issues. Cost: $40-100 per dimmer switch.
0-10V Dimming: Commercial-grade protocol providing smooth, flicker-free control across full 1-100% range. Requires dedicated low-voltage control wire between dimmer and fixturesâbest implemented during initial construction. Superior performance justifies specification for premium installations. Cost: $80-180 per zone controller.
Smart Dimmers: Lutron Caseta, Leviton Decora, or TP-Link Kasa enable smartphone control, voice commands (Alexa, Google, Siri), and scene programming. Replace standard switches with smart modules connecting via WiFi or proprietary hub. Cost: $60-120 per smart dimmer.
Scene Programming
Pre-configured lighting combinations activated via single commandâoptimizing illumination for specific activities without manually adjusting multiple zones.
Dining Scene: Ambient at 30%, task pendants at 60%, accent strips warm amberâcreating intimate ambiance with adequate table illumination.
Entertaining Scene: Ambient at 50%, task at 40%, accent RGB color cyclingâenergetic atmosphere for social gatherings.
Relaxation Scene: Ambient at 10%, task off, accent strips dim warm whiteâsubtle background lighting for late evening.
All-On/All-Off: Maximum brightness for setup/cleanup or complete darkness for stargazing.
Energy consumption reduction achieved by LED fixtures versus equivalent incandescent or halogen alternatives according to Department of Energy testingâcombined with 50,000-100,000 hour service life (15-30 years at 4 hours daily) versus 1,000-5,000 hour traditional bulbs creating dramatic lifecycle cost advantages justifying premium initial investment for Los Angeles pergola installations.
Los Angeles Installation Considerations
Southern California's Mediterranean climate and outdoor living culture create specific lighting requirementsâweatherproofing standards, color temperature preferences, and seasonal usage patterns informing specification decisions.
IP Rating Requirements
Los Angeles's dry climate (15 inches annual rainfall, 284 sunny days) enables less stringent weatherproofing versus humid regionsâbut coastal salt air and temperature extremes still demand outdoor-rated components.
IP65 Minimum: Dust-tight and protected from water jets adequate for covered pergola locationsârain reaching fixtures only during windblown events. Most quality outdoor LED fixtures meet this specification. Premium fixtures achieve IP67 (temporary immersion) unnecessary for typical installations but providing margin.
UV-Resistant Housing: Intense Los Angeles UV (Index 8-10 March-October) degrades plastic fixtures within 3-5 years causing brittleness, yellowing, and cracking. Specify aluminum or UV-stabilized polycarbonate housings achieving 10-15+ year appearance retention.
Color Temperature Selection
Los Angeles outdoor living cultureâevening entertaining, al fresco dining, year-round useâprioritizes warm residential ambiance over clinical task lighting.
Warm White (2700-3000K): Matches incandescent bulbs creating intimate comfortable atmosphereâoptimal choice for ambient and accent lighting in residential pergola applications. Most popular specification representing 75-80% Los Angeles installations.
Neutral White (3500-4000K): Balanced color rendering appropriate for task lighting over cooking areas where accurate food color assessment matters. Mixing neutral task with warm ambient creates layered effectâfocused work lighting within overall comfortable environment.
Bottom Line
Integrated LED lighting systems ($3,500-8,500 complete installation for 12Ă14 ft pergola) transform structures into versatile evening venues through layered design combining ambient overhead illumination (20-40 lumens per sq ft general visibility), focused task lighting (40-60 lumens per sq ft over activity areas), and decorative accent elements highlighting architectural features and landscaping. Professional specifications prioritize IP65+ weatherproof fixtures withstanding Los Angeles conditions, warm white 2700-3000K color temperatures creating residential ambiance, and smart control systems ($800-2,000) enabling dimming, scene programming, and voice/smartphone operation adapting environments effortlessly to different activities. LED technology delivers 75-85% energy savings versus traditional alternatives combined with 50,000-100,000 hour service life (15-30 years typical use) creating dramatic lifecycle advantages justifying premium initial investmentâoperating costs under $50 annually for complete system versus $200-300 incandescent equivalents. Licensed C-10 electrical installation ($1,500-3,500) ensures code compliance, proper circuit sizing, and weatherproof connections preventing failures requiring expensive remediationâprofessional work justified through performance reliability and safety throughout multi-decade service life integrated lighting systems provide transforming outdoor spaces into true extensions of interior living areas usable sunrise to midnight year-round.
