Roof System Categories & Engineering Principles

Pergola roof design determines structure functionality, permitting requirements, thermal performance, and maintenance obligations throughout multi-decade service life. Understanding fundamental roof categories—their engineering principles, performance characteristics, and Los Angeles climate appropriateness—enables homeowners to specify systems matching intended use patterns rather than selecting purely on aesthetic appeal or initial cost.

Open Rafter Systems (Traditional Pergolas)

Traditional pergola roofs consist of parallel rafters or beams creating geometric shade patterns without continuous weather protection. This classical approach originated in Mediterranean architecture where moderate rainfall and warm climates enabled outdoor space enjoyment without complete enclosure.

Structural Configuration: Rafters span between primary beams at 16-24 inch spacing using 2×6, 2×8, or 2×10 dimensional lumber (wood installations) or extruded aluminum channels 4-8 inches width (metal systems). Rafter spacing determines shade density—16-inch spacing creates 60-65% coverage, 24-inch spacing reduces coverage to 40-45%.

Shade Performance: Fixed rafter orientation provides maximum shade when sun perpendicular to rafters (solar noon for north-south oriented structures). Morning and evening low-angle sun passes between rafters reducing effectiveness—diurnal shade patterns creating time-dependent coverage Los Angeles homeowners experience daily.

According to Department of Energy solar geometry research, Los Angeles latitude 34°N creates summer solar noon altitude 79° enabling rafters to provide effective overhead shade June-August, but spring/fall solar altitudes 55-65° and winter 33-40° reduce rafter effectiveness requiring supplemental shade solutions for year-round comfort.

Weather Protection Limitations: Open rafters provide zero rain protection—water passes freely through rafter spacing. For Los Angeles's concentrated winter rainfall (85-90% annual precipitation December-March), open pergolas require furniture removal or weatherproof covers during rainy season unless homeowners accept moisture exposure.

Permitting Advantages: Open rafters maintaining >50% void ratio typically avoid solid-roof building code triggers—simpler permitting process, lower fees ($250-400 versus $400-700 for enclosed systems), and faster review timelines. Burbank, Glendale, and Pasadena building departments generally treat open pergolas as accessory structures rather than enclosed patio covers requiring enhanced structural review.

Cost Structure: Open rafter installation (12×14 ft typical size) costs $2,000-4,000 for wood ($1,200-1,800 materials, $800-2,200 labor) or $4,000-7,000 for aluminum ($2,500-4,200 materials, $1,500-2,800 labor). Lowest-cost pergola roof option but limited functionality compared to weather-protective alternatives.

Solid Panel Roof Systems

Solid panel roofs create continuous weather barrier eliminating open areas—transforming pergola from shade structure to covered outdoor room. Panel materials include polycarbonate (transparent or translucent plastic), metal (aluminum, steel), or composite decking adapted for roofing application.

Polycarbonate Panel Engineering: Multiwall polycarbonate sheets (8-16mm thickness, twin-wall or triple-wall construction) provide impact resistance, UV filtering, and light transmission impossible with opaque materials. Twin-wall sheets (8-10mm) transmit 75-82% light while blocking 99.9% UV radiation—creating naturally-lit covered space protected from sun damage.

Material Specifications: Premium polycarbonate (Palram, Polygal, Tuftex brands) uses virgin polycarbonate resin with co-extruded UV protection layer achieving 15-20 year outdoor life in Los Angeles UV exposure. Economy panels using recycled resin and surface-applied UV coatings degrade within 5-8 years—yellowing, hazing, and embrittlement requiring replacement.

Installation Requirements: Polycarbonate expands/contracts 1/16 inch per 10°F temperature change requiring proper edge clearance preventing buckling. Los Angeles daily temperature cycling 30-40°F creates continuous thermal movement—panels require slotted fastener holes and flexible edge trim accommodating expansion while maintaining weather seal.

Metal Panel Systems: Standing seam metal roofing (24-26 gauge steel or aluminum) adapted for pergola applications provides permanent weather protection with minimal maintenance. Concealed fastener systems eliminate exposed screw penetrations preventing leak points developing over time from thermal cycling and fastener backing-out.

Powder-coated aluminum panels achieve 25-35 year service life with periodic cleaning versus 15-25 years for painted steel in coastal environments. Aluminum's corrosion resistance justifies 30-40% premium over steel for properties within 5-10 miles of Pacific Ocean where salt air accelerates steel degradation.

Drainage Engineering (Critical): Solid roofs require minimum 1/4:12 pitch (1/4 inch vertical rise per 12 inches horizontal run) enabling gravity drainage. Flatter slopes allow water ponding creating leak risk at panel seams and excessive structural loading during rain events.

Los Angeles maximum rainfall intensity 2.5 inches/hour (100-year storm per NOAA Atlas 14) requires gutter capacity calculation: 12-foot roof width × 14-foot length = 168 sq ft catchment area × 2.5 in/hr × 0.623 (conversion factor) = 262 gallons/hour = 4.4 gallons/minute. Standard 5-inch K-style gutter capacity 7-9 GPM adequate; 6-inch gutter (12-15 GPM) provides safety factor.

Downspout sizing: Single 3-inch diameter downspout flows 10-12 GPM—adequate for typical residential pergola. Locate downspouts at low-point corners avoiding mid-run placement creating complex gutter slope coordination.

Roof System Type	Weather Protection	Service Life (LA)	Cost (12×14 ft)	Maintenance
Open Rafters (Wood)	0% rain, 40-60% sun	8-12 years	$2,000-4,000	Annual sealing
Open Rafters (Aluminum)	0% rain, 40-60% sun	25-35 years	$4,000-7,000	Minimal cleaning
Polycarbonate Solid	100% rain, 99.9% UV	15-20 years	$8,000-12,000	Annual cleaning
Metal Solid (Aluminum)	100% rain/sun	25-35 years	$10,000-16,000	Minimal
Fabric Canopy	85-95% rain/UV	5-8 years	$3,000-6,000	Seasonal removal
Motorized Louvered	0-100% variable	25-35 years	$18,000-28,000	Annual service

Advanced Louvered Roof Systems

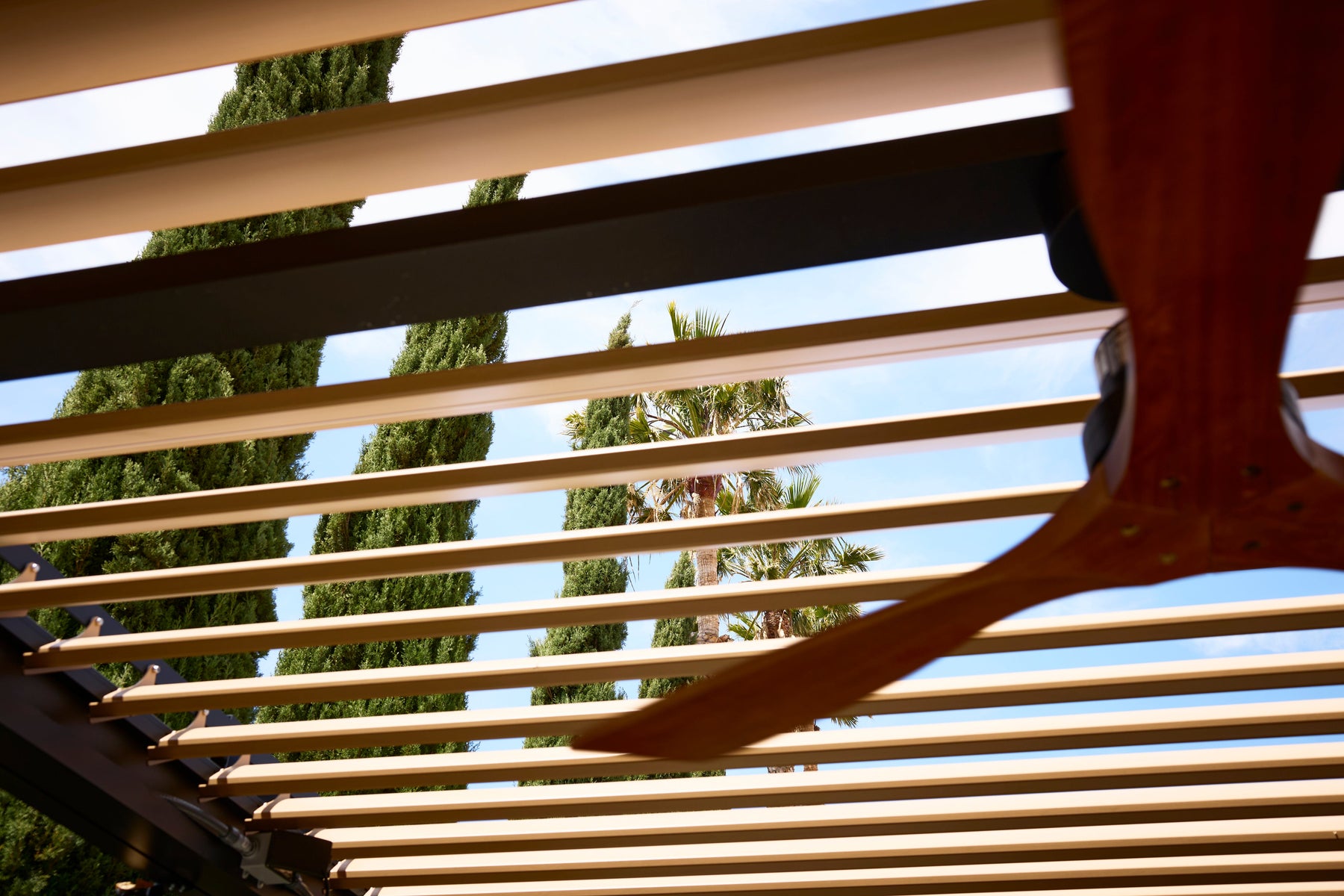

Louvered pergola roofs represent engineering pinnacle—combining weather protection capabilities of solid roofs with ventilation and variable coverage of open systems through rotating aluminum blades actuated electrically. This versatility justifies 2-3× cost premium over solid roof alternatives for Los Angeles homeowners prioritizing year-round outdoor living.

Louver Engineering & Water Management

Louvered roof systems employ horizontal aluminum blades rotating 0-170° on central pivot axes, driven by linear actuators or rack-and-pinion mechanisms. Blade design determines water-tightness, structural strength, and operational smoothness—quality variations creating performance differences invisible during static showroom inspection but evident through years of daily use.

Dual-Wall Blade Construction: Premium systems use extruded aluminum profiles creating dual hollow chambers with integrated EPDM gasket channels. When closed, adjacent blades compress gaskets forming watertight seal achieving 100% rain protection. Economy systems employ single-wall profiles with simple edge-to-edge contact creating 1-3mm gaps allowing water seepage—85-92% protection adequate for shade but insufficient for true outdoor room applications.

Gutter Integration: Closed louvers shed water to perimeter gutters integrated into frame members. Gutter sizing critical—undersized gutters overflow during heavy rain creating water intrusion at structure perimeter. Los Angeles atmospheric river events produce 1-2 inches/hour intensities 2-4 hours duration requiring gutters handling sustained high flow without overflow.

Gutter Capacity Calculation (12×14 ft Roof):

Catchment area: 168 sq ft
Design intensity: 2.5 in/hr (100-year storm)
Flow rate: 168 × 2.5 × 0.623 = 262 gal/hr = 4.4 GPM

Integrated 4-inch rectangular gutter (typical in aluminum frame systems): 6-8 GPM capacity—adequate with moderate safety factor. Larger 5-6 inch gutters provide enhanced capacity but increase frame cross-section affecting aesthetic proportions.

Downspout Discharge: Gutters route water through hollow post columns to grade-level discharge. This concealed drainage eliminates exposed downspouts improving aesthetics but requires proper post base detailing preventing water accumulation causing corrosion. Weep holes or drainage boots at post bases essential—blocked discharge creates standing water destroying powder coat finish and corroding aluminum over years.

Thermal Performance Optimization

Motorized louvered systems enable dynamic thermal management impossible with static roof configurations—adjusting throughout daily solar cycles optimizing shade, ventilation, and radiative cooling appropriate to Los Angeles climate patterns.

Summer Strategy (May-September):

Morning (6-10 AM): Louvers fully open allowing cool night air circulation and low-angle sun without excessive heat gain. Outdoor temperatures 60-75°F comfortable without shade requirements.

Midday (10 AM-4 PM): Louvers close to 30-45° angle providing shade while maintaining airflow. Complete closure creates uncomfortable heat buildup; partial closure balances solar rejection with ventilation. Automated systems adjust louver angle tracking sun altitude throughout day optimizing comfort.

Evening (4-8 PM): Gradual louver opening tracking declining sun and temperatures. By sunset, full opening enables radiative cooling to night sky—pergola surfaces and furniture radiate accumulated heat to atmosphere lowering temperatures 8-12°F versus enclosed spaces enabling comfortable occupancy extending to 10-11 PM.

According to Lawrence Berkeley National Laboratory building science research, this dynamic operation reduces adjacent interior cooling loads 18-24% through preventing solar heat gain before peak afternoon temperatures—equivalent to Low-E² window performance at fraction of window replacement costs.

Winter Strategy (November-March):

Morning (7-11 AM): Louvers fully open maximizing passive solar heat gain during coolest hours. Low winter sun angle (33-45° altitude) penetrates far under roof warming outdoor furniture and surfaces creating comfortable microclimate despite 50-60°F ambient temperatures.

Afternoon (11 AM-3 PM): Louvers remain open unless rain forecast. Winter sun remains pleasant without excessive heat—shade requirements minimal November-February.

Evening (3-7 PM): Louvers close at sunset preventing radiative heat loss maintaining daytime warmth accumulation. Closed louvers reduce radiant heat loss to night sky by 60-75% keeping outdoor space 5-8°F warmer than open configuration—extending comfortable occupancy into evening hours.

Material Selection & Lifecycle Analysis

Pergola roof material determines initial cost, maintenance requirements, replacement frequency, and total lifecycle expenses over 25-35 year typical outdoor structure lifespan. Los Angeles's intense UV exposure (8-10 UV Index March-October), minimal rainfall, and moderate temperatures create specific material performance characteristics differing from humid, snowy, or extreme-climate regions.

Wood Roofing Systems

Traditional wood pergola roofs use dimensional lumber (2×6, 2×8, 2×10 rafters) or engineered wood products creating organic aesthetic harmonizing with landscaping. However, Los Angeles UV exposure and seasonal moisture cycling create maintenance challenges reducing wood's appeal versus low-maintenance alternatives.

Pressure-Treated Lumber: Southern yellow pine treated with copper azole or micronized copper preservatives resists rot and insect damage enabling outdoor use. Treated lumber achieves 8-12 year service life in Los Angeles before deterioration requiring replacement—UV degradation, checking, splitting, and fastener corrosion forcing premature retirement.

Maintenance Requirements: Annual cleaning removing dirt/debris, sanding surface checking, and reapplication of penetrating oil or semi-transparent stain maintaining UV protection and moisture resistance. Homeowners neglecting maintenance experience 30-50% reduction in service life—5-8 years before cosmetic deterioration or structural degradation mandates replacement.

Cost Analysis (12×14 ft Open Rafter System):

Initial: $1,200-1,800 materials, $800-2,200 labor = $2,000-4,000 total
Annual maintenance: $200-400 (DIY) or $400-800 (professional)
10-year lifecycle cost: $4,000 + ($300 annual × 10 years) = $7,000
Replacement cycle: 8-12 years requiring new $2,000-4,000 investment

Cedar and Redwood (Premium Wood Options): Natural rot resistance and attractive grain patterns justify 2-3× cost premium over pressure-treated lumber. Cedar achieves 12-15 year Los Angeles service life; redwood 15-20 years. However, both require annual maintenance preventing UV damage—gray weathering aesthetic acceptable to some homeowners but represents material degradation reducing structural integrity over time.

Aluminum Roofing Systems

Extruded aluminum profiles (rafters, louver blades, solid panels) with powder-coated finish provide superior longevity, minimal maintenance, and design versatility justifying 40-60% cost premium over wood alternatives for Los Angeles installations.

Alloy Selection: Premium systems specify 6061-T6 aluminum achieving 310 MPa tensile strength—67% stronger than 6063-T5 architectural extrusions used in economy systems. Strength advantage enables thinner wall sections reducing weight while maintaining structural capacity—critical for motorized louver systems where reduced mass enables smaller motors and smoother operation.

Powder Coating Durability: AAMA 2604 certified powder coating (premium systems) maintains gloss retention >70% after 10-year Florida exposure (ASTM D4214 accelerated weathering test) translating to 20-25 year attractive appearance in Los Angeles less-intense UV. Economy systems using AAMA 2603 coating fade within 7-10 years requiring recoating ($2,000-4,000 for 12×14 ft structure) restoring appearance.

Corrosion Resistance: Aluminum forms protective aluminum oxide layer preventing progressive corrosion unlike steel requiring paint/coating preventing rust. Coastal Los Angeles properties (within 5-10 miles Pacific Ocean) experience salt air exposure accelerating steel corrosion—aluminum's immunity justifies specification even when initial costs 30-40% higher than painted steel alternatives requiring recoating 10-15 year intervals.

Cost Analysis (12×14 ft Aluminum Louvered System):

Initial: $18,000-28,000 installed
Annual maintenance: $100-200 cleaning
25-year lifecycle cost: $25,000 + ($150 annual × 25) = $28,750
Replacement cycle: 25-35 years—potential outlasting homeownership

Amortized over 25-year service life: $1,150/year versus wood at $1,000-1,200/year including maintenance and replacement—aluminum proving cost-competitive while delivering superior performance, convenience, and aesthetics.
