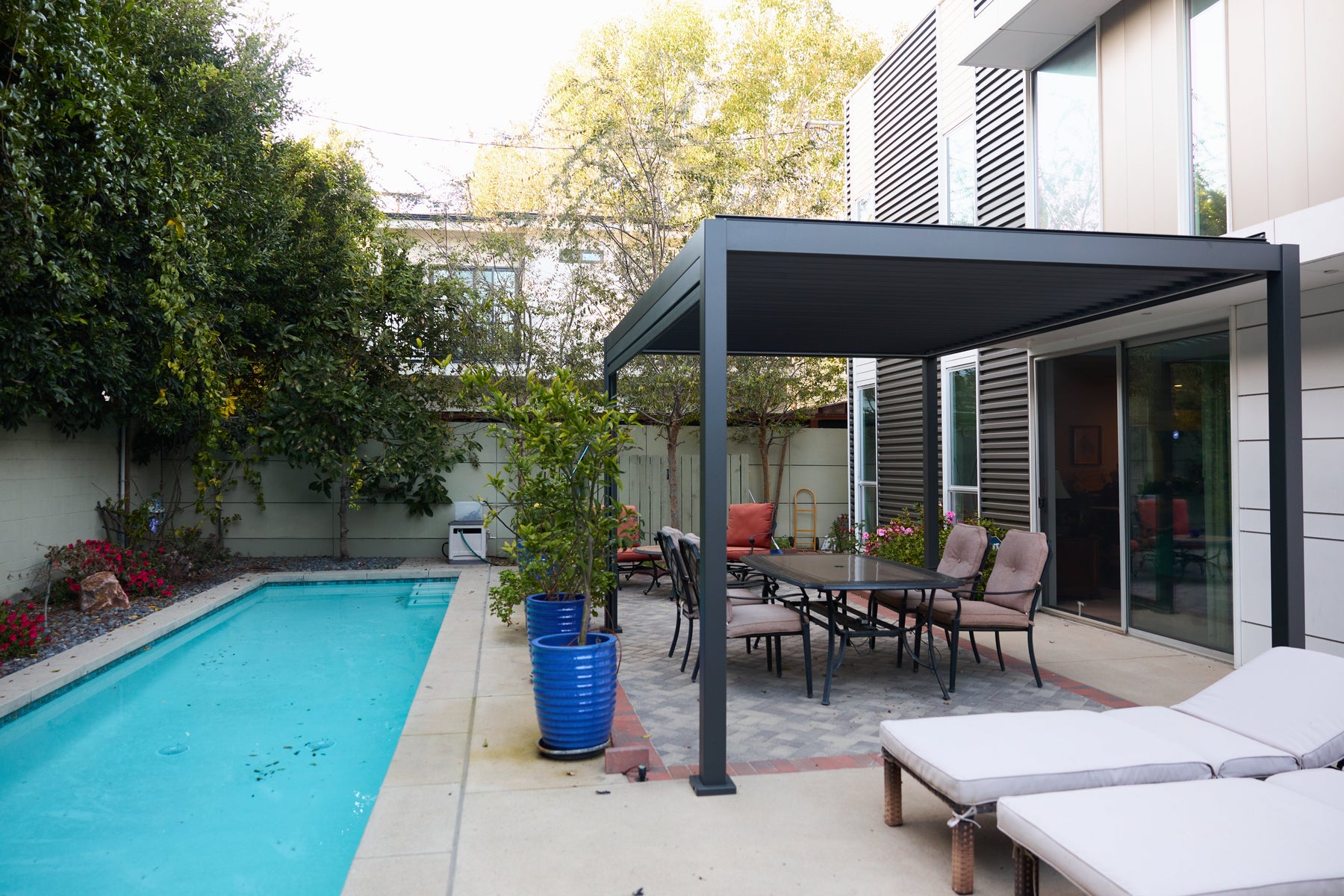

Aluminum Pergola Systems

Extruded aluminum represents contemporary standard for premium residential pergola construction—dominating modern architecture applications (85-90% contemporary home installations Los Angeles), coastal environments requiring corrosion resistance, and affluent demographics prioritizing maintenance elimination over initial cost considerations through combination of structural performance, durability advantages, and aesthetic sophistication impossible alternative materials deliver.

Alloy Specifications & Structural Properties

6061-T6 Alloy Engineering: Heat-treatable aluminum-magnesium-silicon composition (0.8-1.2% magnesium, 0.4-0.8% silicon primary strengthening elements) solution heat-treated (990°F soak, rapid quench) then artificially aged (340°F 8-12 hours precipitation hardening) achieving T6 temper designation—310 MPa tensile strength, 276 MPa yield strength, 12-17% elongation at failure providing ductility preventing brittle fracture. Strength-to-weight ratio superior wood: aluminum specific strength 115,000 (tensile strength/density ratio) versus Douglas fir 75,000, redwood 60,000—enabling lighter structures with equivalent or superior load capacity. Typical pergola member sizing: 4×4 inch posts (0.125-0.188 inch wall thickness), 4×6 or 6×6 inch beams (0.125-0.250 inch walls dependent on span), and 2×4 or 3×4 inch rafters—hollow extruded profiles providing optimal strength-to-weight versus solid sections while accommodating electrical wiring (motorized systems), drainage (integrated gutters), and fastener concealment (internal connections).

Extrusion Process Advantages: Heated aluminum billet (6-12 inch diameter cylindrical stock) forced through steel die creating consistent cross-section complex geometry—enabling custom profiles with integral features (gasket channels, wire chases, mounting grooves, decorative details) impossible wood milling or fabrication. Dimensional precision: ±0.010-0.020 inch tolerance maintaining tight fit-up critical concealed fastener systems, uniform wall thickness ensuring predictable structural performance, and perfectly straight members (versus wood natural variation requiring selection/sorting). Surface finish: extrusion die creating uniform texture (matte, brushed, or smooth dependent on die condition and post-processing) providing ideal substrate for powder coating adhesion. Length availability: standard 20-24 foot extrusions adequate most residential spans, custom lengths 30-40 feet possible (specialty applications, shipping constraints), and precise cutting maintaining square ends/accurate dimensions.

Powder Coating Finish Systems

Application Process & Performance: Electrostatic powder application—electrically charged polymer particles (70-150 micron size) attracted grounded aluminum substrate creating uniform 1.5-2.5 mil dry film thickness, then oven-cured (350-400°F 10-20 minutes) cross-linking polymer chains forming durable coating mechanically and chemically bonded to aluminum. AAMA 2605 fluoropolymer specification: 70% minimum polyvinylidene fluoride (PVDF) resin providing superior UV resistance, color stability, and chemical resistance versus polyester powder coatings (AAMA 2604, economy applications). Testing requirements: 10-year Florida exposure (ASTM D1014, D4214, D6577) simulating 15-25 years typical climate, salt spray resistance (ASTM B117, 3,000-5,000 hours without failure), humidity resistance (ASTM D2247, 95% RH, 100°F), and color measurement (ASTM D2244, Delta E <5 units acceptable change). Los Angeles applications: UV Index 8-10 peak months (March-October) creating extreme exposure where economy coatings failing 5-8 years versus AAMA 2605 maintaining appearance 20-30+ years.

Color Selection & Coordination: Standard architectural palette: charcoal gray (RAL 7016, similar), bronze (RAL 8014, 8019), black (RAL 9005 jet black), white (RAL 9016 traffic white), and beige/tan (RAL 1019, 1013)—80-85% pergola selections within these options coordinating modern home window frames, trim, and architectural details. Custom color matching: any RAL, Pantone, or proprietary color achievable ($3,000-6,000 premium, 1,000 lb minimum powder order, 8-12 week lead time) appropriate architect-specified exact hue coordination. Texture options: smooth (high-gloss 60-80% reflectance, formal appearance), satin (semi-gloss 30-50%, most popular residential), matte (low-gloss 10-25%, contemporary minimalism), and textured (slight orange peel 30-40 micron roughness, hiding minor surface imperfections). Los Angeles preferences: matte and satin finishes dominating (75-80% selections) through reduced glare (important intense sunlight), sophisticated appearance, and practical dirt/fingerprint concealment versus high-gloss showing every imperfection.

Installation & Connection Systems

Concealed Fastener Technologies: Modern aluminum pergolas featuring internal connections maintaining clean exterior surfaces—T-slot extrusions (integral channels accepting slide-in nuts/bolts), tab-and-slot mechanical joints (precision-machined interlocking components), and internal set screws (accessed through removable plugs then concealed). Benefits: smooth uninterrupted planes (no protruding bolt heads disrupting visual flow), weather protection (fasteners not directly exposed rain/moisture), and architectural refinement (appropriate modern aesthetic demanding clean lines). Structural adequacy: concealed systems achieving equivalent or superior strength versus exposed bolting through increased bearing area (internal reinforcement distributing loads), precise fit-up (machined tolerances preventing gaps), and corrosion elimination (fasteners not exposed elements). Installation complexity: requiring skilled fabricators (specialty tools, precise measurements, understanding proprietary systems) versus straightforward exposed bolting DIY-friendly—adding $2,000-5,000 labor premium but delivering superior aesthetic justifying affluent market.

Foundation Connection Methods: Surface-mounted post bases (Simpson Strong-Tie ABU series, similar rated products) attaching concrete patio slabs via expansion anchors or epoxy-set bolts—eliminating poured footings reducing installation costs $3,000-6,000 while enabling future relocation. Base plate sizing: 8×8 to 12×12 inch footprint distributing post loading across adequate concrete area preventing localized crushing, integrated leveling provisions (shims, adjustable feet) accommodating minor surface variations, and corrosion-resistant fasteners (stainless steel 304/316, hot-dip galvanized). Embedded footings alternative: posts extending into 18×18×24 inch concrete piers (expansive clay soils Los Angeles County requiring deeper support), galvanized steel sleeves protecting aluminum-concrete interface, and below-grade wrapping (bituminous tape preventing concrete moisture contact). Wall-attached configurations: through-bolted ledger boards penetrating stud framing (2-3 lag screws per stud, 16-24 inch spacing) transferring roof loading to residence structure—flashing integration preventing water infiltration critical.

Property	6061-T6 Aluminum	Western Red Cedar	Pressure-Treated Pine	Wood-Polymer Composite
Tensile Strength	310 MPa (45,000 PSI)	65-95 MPa (9,500-13,800 PSI)	40-70 MPa (5,800-10,200 PSI)	20-35 MPa (2,900-5,100 PSI)
Density	2.70 g/cm³	0.33 g/cm³	0.51 g/cm³	0.9-1.2 g/cm³
Thermal Expansion	23×10⁻⁶/°C	3-7×10⁻⁶/°C	3-7×10⁻⁶/°C	30-60×10⁻⁶/°C
Moisture Absorption	0% (inert)	12-20% (seasonal)	15-25% (seasonal)	0.5-2% (minimal)
Service Life (LA)	40-60+ years	15-25 years (maintained)	25-40 years (maintained)	15-25 years (UV limited)
Maintenance Frequency	Annual washing	Refinish every 2-3 years	Refinish every 2-3 years	Periodic cleaning
Spanning Capacity	18-24 ft single beam	12-16 ft single, 18-20 ft doubled	10-14 ft single, 16-18 ft doubled	6-8 ft maximum

Natural Wood Pergola Materials

Traditional wood construction providing warm organic aesthetic, natural grain beauty, and DIY-friendly assembly through conventional carpentry techniques—remaining popular among homeowners valuing authentic material character, accepting ongoing maintenance commitment, and prioritizing lower initial investment over lifecycle cost considerations despite aluminum's superior long-term value proposition through maintenance elimination and extended durability.

Species Selection & Characteristics

Western Red Cedar (Premium Choice): Thuja plicata softwood native Pacific Northwest offering natural decay resistance through thujaplicin extractives (fungal inhibitors), dimensional stability "medium" rating (better than most softwoods), low density 0.33 g/cm³ (lightweight handling, easy working), and attractive reddish-brown heartwood color aging silver-gray if left untreated. Durability: 15-20 year untreated exterior lifespan (versus 8-12 years pine/fir standard softwoods)—heartwood superior sapwood (extractive concentration higher, specify "all-heart" or "clear vertical-grain" premium applications). Working properties: straight grain machines cleanly, accepts fasteners without splitting (pilot holes still recommended), and aromatic scent (natural insect repellent). Los Angeles availability: shipped from Pacific Northwest mills (Oregon, Washington, British Columbia) adding transportation costs, pricing $4-8 per board foot versus $2-4 pressure-treated pine. Maintenance requirements: biennial refinishing maintaining original color (UV degradation turning gray within 6-12 months sun exposure), semi-transparent stains preferred (showing grain, easy reapplication versus solid paints hiding wood character), and fastener inspection (stainless steel specified, galvanized corroding from cedar acidity).

California Redwood (Regional Option): Sequoia sempervirens coastal California native offering similar decay resistance cedar through tannin content, beautiful deep red coloration (darker than cedar), fine even grain, and local availability reducing transportation versus imported species. Grades: "Clear All Heart" premium (100% heartwood, no knots, $8-12 per board foot), "Select Heart" standard (minor character marks, $5-8), and "Construction Heart" economy ($3-5, accepts more defects). Durability: equivalent cedar 15-20 years untreated, superior in high-moisture environments (natural habitat coastal fog belt creating evolved resistance). Advantages: regional pride (California-grown supporting local industry), reduced embodied energy (shorter shipping distances versus Pacific Northwest cedar or tropical hardwoods), and historical significance (iconic California architecture material). Disadvantages: limited commercial availability (old-growth logging restrictions, second-growth smaller dimensions), premium pricing (supply constraints versus cedar commodity market), and similar maintenance requirements (refinishing every 2-3 years, natural weathering acceptable or prevention through coating).

Pressure-Treated Pine (Economy Standard): Southern yellow pine (Pinus species) chemically preserved ACQ or CA-B copper-based preservatives providing ground-contact protection—25-40 year service life properly maintained, substantial cost advantage ($2-4 per board foot versus $4-8 cedar/redwood), and widespread availability (commodity building material, all lumber yards stocking). Treatment process: preservative forced into wood cellular structure under pressure (10-15 PSI, 0.25-0.40 PCF copper retention ground-contact, 0.15-0.25 above-ground), killing existing organisms and preventing future colonization. Limitations: green/brown chemical tint requiring staining (achieving natural appearance), moisture content 18-28% post-treatment (necessitating drying 2-4 weeks before assembly preventing warping), dimensional instability (greater shrinkage/swelling versus cedar), and copper corrosion concerns (stainless steel fasteners specified, galvanized degrading). Los Angeles applications: appropriate budget-conscious installations, traditional architecture coordinating existing PT lumber structures, and DIY projects (familiar material, standard carpentry techniques, affordable experimentation).

Wood Maintenance Requirements

Refinishing Cycle & Procedures: Biennial maintenance (every 2-3 years) preserving appearance and preventing accelerated deterioration—sanding (60-80 grit removing weathered surface layer, old finish, gray oxidation), cleaning (pressure washing or chemical brightener removing mildew/dirt), drying (24-48 hours before coating application), staining (semi-transparent oil-based products showing grain, water-based less odor faster drying), and sealing (optional topcoat providing additional moisture protection). Labor: 12×14 ft pergola requiring 12-16 hours DIY work or $800-1,500 professional application (material $150-300, labor $650-1,200). Coastal Los Angeles accelerated schedule: annual refinishing marine environment (salt air, persistent moisture, aggressive UV reflection off water) versus 2-3 years inland. Consequences neglecting maintenance: UV degradation (lignin breakdown turning wood gray), moisture ingress (repeated wetting/drying causing dimensional changes, checking/cracking), biological colonization (mildew surface growth, fungal decay structural deterioration), and accelerated service life reduction (10-12 years unmaintained versus 18-25 years properly cared).

Structural Deterioration Issues: Wood vulnerability creating ongoing concerns—checking (surface cracks along grain from drying stresses, 1/8-1/4 inch width typical, mostly cosmetic but moisture entry points), warping (bowing/cupping from uneven moisture content, straightening requiring replacement or mechanical restraint), insect damage (carpenter bees boring 1/2 inch diameter holes, termites if ground contact, powder post beetles dry wood), and fungal decay (brown/white rot causing structural softening, primarily moisture-exposed areas inadequate drainage). Fastener corrosion: galvanized hardware reacting with cedar/redwood natural acidity causing rust staining (unsightly streaks requiring chemical removal or sanding), loosening connections (corrosion products expanding forcing wood splitting), and eventual failure (bolt heads corroding through, lag screws losing holding power)—necessitating stainless steel specification (304 grade minimum, 316 coastal applications) adding 30-50% hardware costs but eliminating corrosion issues. Los Angeles climate impacts: minimal precipitation questioning rot concerns but atmospheric river events (2-4 inches 24 hours) saturating unprotected wood, intense UV (Index 8-10) accelerating surface degradation, and temperature cycling (45-105°F extremes) stressing dimensional stability creating checks/warping.

Cost-Performance Analysis

Initial Investment Comparison: Cedar/redwood pergola 14×16 ft (224 sq ft) typical costs—materials $4,500-8,000 (posts, beams, rafters, lattice, fasteners), labor $8,000-15,000 (professional carpentry 60-100 hours, $80-150 per hour including overhead), and miscellaneous $1,500-3,000 (foundation, permits, stain/sealer, accessories) totaling $14,000-26,000 complete installation. Pressure-treated alternative: materials $2,500-5,000 (30-40% savings versus cedar), labor similar $8,000-15,000 (same construction methods), miscellaneous $1,500-3,000 creating $12,000-23,000 total—modest savings questioning value given similar labor costs (material fraction of total). Aluminum comparison: $22,000-32,000 same size representing 30-50% premium over PT, 10-25% over cedar—initially appearing expensive but lifecycle analysis reversing conclusion through maintenance elimination ($10,000-18,750 savings 25 years), superior durability (40+ years versus 15-25 years wood), and enhanced property value (modern material appealing affluent buyers, aluminum perceived premium versus wood maintenance liability).

Lifecycle Total Ownership: 25-year cedar pergola costs—initial installation $18,000, refinishing $1,000 every 2.5 years (10 cycles = $10,000), board replacement deteriorated sections $2,000 (years 15-20), fastener repair $1,000 (corrosion issues), and eventual major rebuild/replacement year 25 ($15,000-20,000 full reconstruction) totaling $46,000-51,000 single structure lifecycle. Aluminum alternative: initial $25,000, annual washing $300 (DIY, 25 years = $7,500), motor servicing $800 (once decade = $1,600), zero structural repairs, and 40+ year lifespan eliminating second installation creating $34,100 total—$12,000-17,000 savings (26-33% lower total cost) despite higher upfront investment. Property value impact: aluminum pergolas recovering 60-75% installation costs through increased appraisal versus wood 45-60% (modern material premium, maintenance-free appeal buyers), and superior resale marketability (affluent demographics specifically seeking low-maintenance outdoor improvements avoiding wood labor commitments).

Composite & Alternative Materials

Engineered composite pergola materials combining wood aesthetics with synthetic durability offering low-maintenance alternative natural wood while avoiding aluminum's contemporary appearance and premium pricing—but exhibiting significant performance limitations (restricted spanning capacity, thermal expansion concerns, structural creep) restricting applications and questioning value proposition despite maintenance reduction marketing positioning suggests superior all materials.

Wood-Polymer Composite Specifications

Material Composition & Manufacturing: Extruded profiles combining 50-70% wood fiber (sawdust, wood flour from lumber mill waste providing organic appearance, natural texture) with 30-50% thermoplastic polymer (HDPE high-density polyethylene or PVC polyvinyl chloride binding agents, UV stabilizers, colorants)—heated mixture forced through dies creating consistent hollow or solid profiles. Common brands: Trex (leader market share, HDPE-based), TimberTech/Azek (premium PVC capped products), Fiberon, MoistureShield—originally developed decking applications (boards, railings) now marketed pergola beams/rafters. Performance characteristics: moisture resistance (minimal absorption 0.5-2% versus 12-25% wood eliminating rot concerns), insect immunity (no nutritional value termites/carpenter bees), and color-through construction (integral pigments versus surface coatings, scratches less visible). Limitations: structural capacity restricted (6-8 foot maximum beam spans versus 12-16 feet wood, 18-24 feet aluminum), creep deflection (permanent sagging under sustained loading particularly elevated temperatures), and thermal expansion (30-60×10⁻⁶ per °C creating significant linear movement).

Installation Challenges & Solutions: Thermal expansion critical Los Angeles temperature swings (45-105°F extremes, 60°F differential)—12-foot composite beam experiencing 0.22-0.43 inch linear movement necessitating expansion gaps (1/4-1/2 inch spacing between boards), sliding fastener connections (allowing movement preventing buckling), or flexible attachment (preventing stress concentrations). Fastening: stainless steel screws specified (composite acidity corroding galvanized similar to cedar), pilot holes required (preventing splitting/cracking), and avoiding overtightening (composite softer than wood, fastener heads pulling through under stress). Spanning limitations: composite beams requiring closer post spacing versus wood (8-foot centers versus 12-16 feet) increasing post count, material costs, and visual obstruction—or doubled/tripled members (laminating multiple boards achieving adequate strength) increasing weight and expense negating supposed composite advantages. UV degradation: despite stabilizer additives, composite surfaces chalking (powdery residue from polymer breakdown), fading (color loss 10-20% over 5-10 years), and mildew growth (organic material supporting biological colonization despite claims otherwise) requiring periodic cleaning pressure washing/chemicals.

Vinyl/PVC Extrusions

Material Properties & Applications: Pure PVC (polyvinyl chloride) extruded profiles offering completely synthetic solution—zero wood content eliminating moisture absorption, rot, or insect concerns, and maintenance-free surface (cleaning only upkeep required). Common configurations: hollow 4×4 or 6×6 inch posts (thin walls 0.125-0.188 inch thickness, internal reinforcement ribs or foam filling), 4×6 or 6×6 inch beams, and decorative elements (column wraps, capitals, brackets injection-molded). Color limitations: white dominant (90%+ market), limited alternatives (tan, gray availability brand-dependent), and no custom colors (versus aluminum powder coating unlimited palette)—restricting design coordination modern architecture favoring charcoal/black/bronze aesthetics. Performance: adequate small residential gazebos, arbors, entry features (6-8 foot spans, minimal loading), but questionable larger pergolas (12×14 ft+) requiring structural supplementation (internal steel reinforcement, closer post spacing).

Performance Limitations: Thermal expansion extreme—PVC coefficient 50-80×10⁻⁶ per °C (2-3× composite, 8-10× wood, similar aluminum but PVC lower modulus creating visible movement)—10-foot beam experiencing 0.30-0.48 inch length change 60°F temperature differential necessitating obvious gaps or flexible connections. Structural capacity minimal: vinyl beams spanning only 6-8 feet without internal steel reinforcement (negating maintenance-free claims—steel corroding if water infiltrates hollow sections), sag/deflection under loading (temporary deflection recovering after load removal but permanent creep over time), and fragile nature (impact-sensitive, cold weather brittleness, accidental damage cracking requiring replacement). UV degradation: chalking (surface powder), yellowing (white vinyl becoming cream/tan over years), and eventual brittleness (sunlight breaking polymer chains reducing impact resistance)—15-20 year Los Angeles lifespan before replacement consideration. Cost: $15,000-24,000 complete 12×14 ft vinyl pergola (similar wood, 30-40% less aluminum)—questioning value given performance limitations, spanning restrictions, and aesthetic compromises versus superior alternatives.

Los Angeles Climate Material Selection

Southern California Mediterranean conditions creating specific material performance requirements through environmental stressors, usage patterns, and aesthetic context—favoring certain materials while penalizing others through accelerated degradation, maintenance burdens, or architectural mismatches questioning universal recommendations applicable all climates and situations rather than location-specific optimization critical successful installations.

UV Exposure & Heat Management

Solar Radiation Intensity: Los Angeles UV Index 8-10 peak months (March-October "very high" to "extreme" categories)—surface materials receiving 284 sunny days annually creating relentless exposure accelerating degradation all organic materials (wood, composite containing wood fiber, even pure vinyl polymers). Wood impacts: lignin (natural polymer binding cellulose fibers) breaking down under UV causing surface graying (oxidation), weakening (loss of structural continuity), and increased moisture absorption (deteriorated surface acting as wick)—requiring refinishing every 2-3 years maintaining protective coating barrier. Composite/vinyl: stabilizer additives (UV absorbers, antioxidants) providing 10-15 year protection before surface chalking, fading, and brittleness indicating replacement consideration. Aluminum immunity: inorganic metal unaffected UV radiation (no molecular bonds breaking from photon energy), powder coating AAMA 2605 specification maintaining appearance 20-30+ years extreme exposure through fluoropolymer UV resistance.

Thermal Conductivity & Comfort: Material surface temperatures summer peak conditions (95-105°F San Fernando Valley ambient)—aluminum reaching 130-145°F (thermal conductivity 205 W/m·K rapidly absorbing/dissipating heat), wood 110-125°F (conductivity 0.1-0.2 W/m·K slower response), composite 135-150°F (dark colors, thermal mass creating extended heat retention). Contact burn concerns: aluminum posts/beams uncomfortable touch midday hours (users learning avoid or quickly releasing), wood generally acceptable (lower temperatures, organic "warm" feel), composite potentially problematic (high surface temps, plastic "hot" sensation). Mitigation: powder coating lighter colors (white, light gray) reducing absorption versus dark charcoal/black, strategic positioning (shaded posts, beam elevations above casual contact height), and user education (avoiding touch hottest hours). Infrared radiation: overhead materials re-radiating absorbed heat downward affecting covered space comfort—aluminum with lighter coatings re-radiating less versus dark composite absorbing/releasing substantial thermal energy requiring additional shade density or ceiling fans maintaining comfort.

Coastal Environment Considerations

Salt Air Corrosion: Marine environments (Malibu, Manhattan Beach, Santa Monica, coastal properties within 1-3 miles ocean) experiencing aggressive atmospheric salt concentrations accelerating metal corrosion and wood deterioration. Aluminum advantages: natural aluminum oxide layer (self-healing protective film) providing inherent corrosion resistance, 6061 alloy specifically formulated marine applications, powder coating additional barrier preventing salt contact—40-60 year coastal service life versus 15-25 years inland through environmental durability. Wood vulnerability: salt accelerating moisture retention (hygroscopic salt crystals attracting atmospheric humidity even dry conditions), accelerated biological growth (salt-tolerant organisms colonizing), and fastener corrosion (galvanized hardware rapidly failing necessitating stainless steel specification 316 grade marine environments). Composite better than wood: synthetic polymer components immune salt damage, but wood fiber content (50-70%) still vulnerable moisture retention and biological growth requiring more frequent cleaning coastal versus inland installations.

Moisture & Humidity Effects: Coastal marine layer (overnight/morning fog typical May-September "June Gloom") creating persistent surface moisture despite Los Angeles minimal precipitation—condensation forming on materials during temperature cycling, salt-laden moisture accelerating deterioration, and biological growth (mildew, algae) on hospitable surfaces. Wood impacts: repeated wetting/drying cycles (even without rain) causing dimensional changes (swelling when moist, shrinking when dry), checking/warping cumulative damage, and accelerated refinishing schedule (annually coastal zone versus 2-3 years inland maintaining protective barrier integrity). Aluminum unaffected: inorganic metal experiencing no dimensional change moisture exposure, powder coating preventing surface issues, and zero biological growth (non-nutritive substrate). Composite intermediate: minimal moisture absorption preventing dimensional instability but organic wood fiber content supporting surface mildew growth requiring periodic cleaning pressure washing/chemical treatment—approximately biennial maintenance versus annual washing aluminum or triennial refinishing wood.
