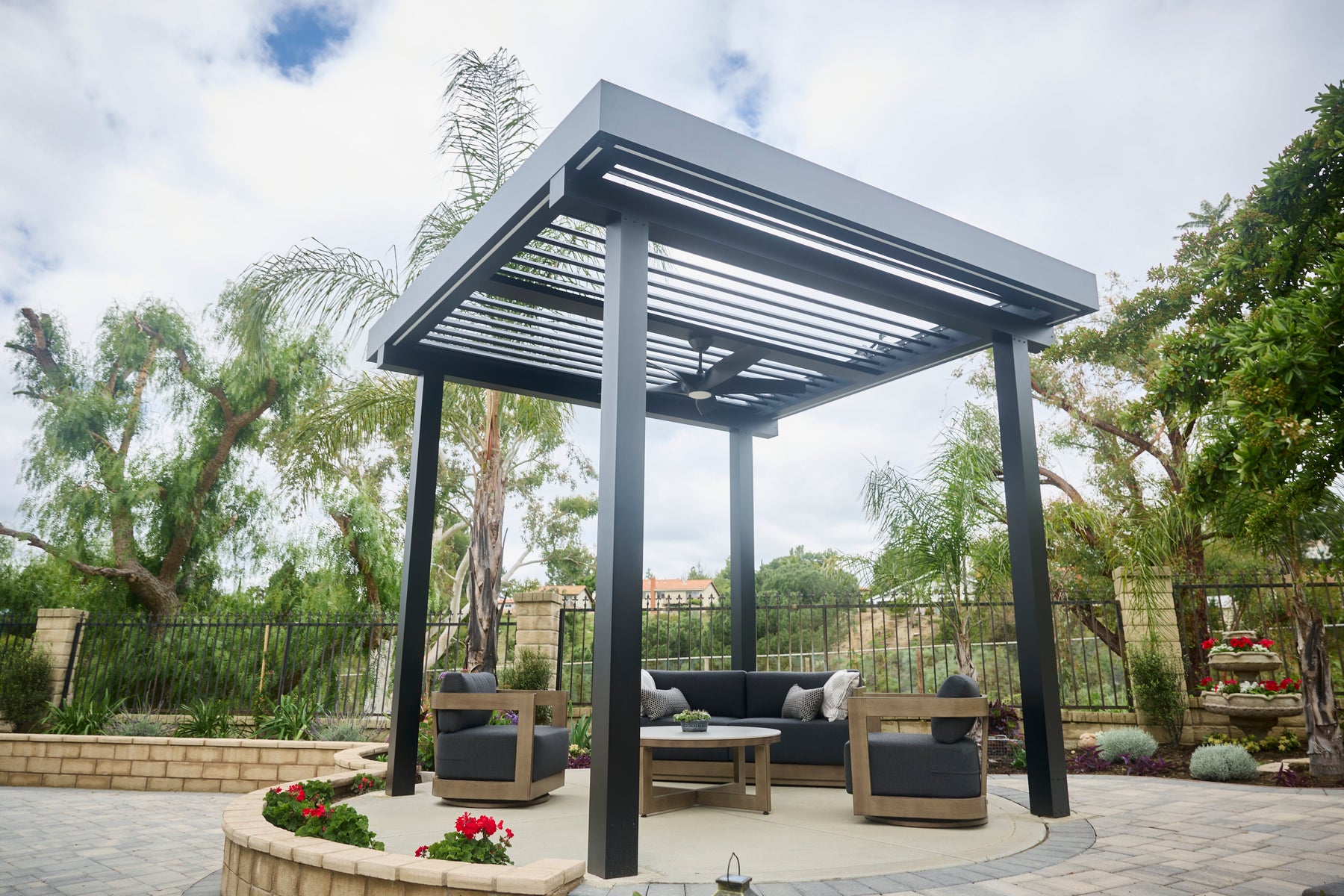

Pre-Installation Planning & Site Assessment

Successful pergola installation begins weeks before construction crews arrive on-site, requiring comprehensive property evaluation, design optimization, jurisdictional research, and contractor selection. Los Angeles homeowners skipping or abbreviating this planning phase experience 3-4× higher probability of permit delays, cost overruns, and unsatisfactory final results compared to projects investing adequate upfront effort establishing clear parameters and realistic expectations.

Property Evaluation & Site Selection

Pergola positioning determines both functionality and permitting complexity—proper site selection accounts for solar orientation, utility locations, property line setbacks, and soil conditions before design work begins.

Solar Orientation Analysis: Los Angeles's latitude (34°N) and year-round outdoor living create specific shade pattern requirements differing from northern climates. South-facing pergola orientation provides maximum overhead shade during summer months (sun directly overhead at solar noon) but minimal winter sun blockage (low-angle sun passing underneath most louver configurations). East-west orientation creates morning/evening shade challenges requiring integrated retractable screens on ends addressing low-angle sun penetration.

Optimal pergola positioning for typical Los Angeles residential application: south or southwest-facing long axis providing afternoon shade coverage (2-7 PM peak UV hours) while enabling morning sun access for breakfast/coffee use. This orientation maxim extends to 90% of installations in Burbank, Glendale, and Pasadena flat residential lots.

Utility Location Verification: Underground utilities (gas, water, sewer, electrical, telecommunications) create foundation excavation constraints and potential safety hazards. California law (Government Code §4216) requires contractors call 811 (Underground Service Alert) minimum 2 business days before excavation enabling utility companies to mark underground infrastructure.

Common utility conflicts in Los Angeles residential properties:

Gas Service Lines: Typically 18-24 inches deep running from street to house meter. Conflict probability increases near house walls where pergola posts often position. Solutions include relocating post positions 3-4 feet away from utility path or professional utility relocation ($1,500-3,000 depending on complexity).

Irrigation Systems: Drip lines, sprinkler heads, and main supply lines rarely appear on utility maps creating surprise encounters during excavation. Careful visual inspection during site planning (looking for sprinkler heads, valve boxes, areas of lusher grass indicating buried lines) prevents damage. Broken irrigation lines add $200-500 repair costs and 1-2 day construction delays.

Electrical Conduits: Underground power feeding pool equipment, landscape lighting, or detached structures. These 18-30 inch deep installations rarely mark locations but create serious safety hazards if struck. Always verify electrical pathway locations with homeowners before foundation excavation.

Property Line Setbacks: Municipal zoning codes require minimum distances between structures and property lines preventing neighbor encroachment and maintaining fire safety clearances. Burbank, Glendale, and Pasadena maintain similar but distinct requirements:

Burbank (BMC Title 30): Accessory structures require 5-foot rear yard setback, 5-foot side yard setback from interior lot lines. Corner lots maintain 15-foot setback from street-facing property lines. Exceptions possible through variance process but add 60-90 days and $2,000-4,000 application/attorney fees.

Glendale (GMC Title 30): 5-foot minimum all property lines except street frontage requiring 20 feet. Hillside properties (slopes >10%) may require increased setbacks determined case-by-case by planning department.

Pasadena (PMC Title 17): R-1 single-family zoning requires 5-foot side/rear setbacks, 25-foot front setback. Historic districts (Bungalow Heaven, Madison Heights, Oak Knoll) impose additional design review creating 30-45 day approval extensions beyond standard permit processing.

According to LA City Planning Department guidance, property owners should verify setback requirements with zoning counter before finalizing pergola locations—violations discovered during permit review require design changes delaying projects 2-4 weeks and potentially necessitating different pergola sizes increasing costs.

Soil Investigation & Foundation Engineering

Los Angeles County's diverse geology—expansive clay soils in valleys, collapsible soils on hillsides, liquefiable soils near waterways—creates foundation design variability impossible with generic one-size-fits-all approaches.

Expansive Clay Soils (Burbank, Glendale Valleys): Montmorillonite clay content creates 10-20% volumetric swell during wet winters (December-March) and 15-25% shrinkage during dry summers (June-October). This seasonal movement lifts and drops shallow foundations causing structural damage unless footings extend below active zone depth.

Active zone depth determination requires either geotechnical investigation ($1,200-2,000 for residential site) or conservative design assumptions. Most Burbank/Glendale building departments accept 36-42 inch footing depth without formal soils report based on regional soil patterns. Deeper footings (48+ inches) may require geotechnical verification supporting design decisions.

Hillside Collapsible Soils (Pasadena Foothills, La Cañada): Properties on slopes >10-15% may contain collapsible soils—loose, dry deposits that compress suddenly when wetted. These soils appear firm when dry but lose 50-75% bearing capacity during rain events creating catastrophic settlement.

Building departments mandate geotechnical investigation for hillside pergola projects determining soil classification and foundation recommendations. Investigation costs $1,500-2,500 but prevents failures costing $10,000-25,000 in remedial foundation work plus structure replacement.

Liquefiable Soils (Near Streams, Historic Washes): Sandy soils saturated with groundwater lose all bearing capacity during seismic shaking, behaving like liquid rather than solid. Properties near Los Angeles River, Arroyo Seco, or other waterways may contain liquefiable soils requiring special foundation design (deeper embedment, larger diameter, enhanced reinforcement).

California Geological Survey maintains Seismic Hazard Zone maps identifying liquefaction-susceptible areas. Properties within mapped zones require geotechnical evaluation as part of building permit process—non-negotiable requirement regardless of structure size or cost.

Pergola Cave conducts site-specific foundation engineering for every project using combination of published soil maps, building department knowledge, and visual site assessment. Projects flagged for potential soil concerns receive geotechnical investigation recommendations before contract signing—preventing surprise mid-project engineering requirements disrupting schedules and budgets.

Jurisdiction	Permit Fees	Review Timeline	Required Documents
Burbank	$350-500	10-15 business days	Site plan, elevations, structural calc
Glendale	$400-650	15-20 business days	Site plan, elevations, soils report (hillside)
Pasadena	$350-600	15-25 business days	Site plan, elevations, historic review (designated areas)
LA County Unincorporated	$450-700	20-30 business days	Site plan, elevations, structural calc, soils (slopes)

Permitting Process & Building Department Navigation

Los Angeles County pergola permits require navigating bureaucratic processes varying substantially between adjacent jurisdictions—Burbank's relatively streamlined online system versus Glendale's in-person plan check requirements versus Pasadena's historic district design review create different procedural paths to same end goal of approved construction authorization.

Permit Application Requirements

Building permits require comprehensive documentation package demonstrating project compliance with structural, electrical, energy, and zoning codes. Incomplete applications delay processing 2-4 weeks while waiting for missing elements—complete initial submission represents fastest path to approval.

Required Documents (All Jurisdictions):

Site Plan: Scaled drawing (typically 1/4 inch = 1 foot or 1/8 inch = 1 foot) showing property boundaries, existing structures, proposed pergola location with dimensions, setbacks to all property lines, utility easements, and drainage patterns. Hand-drawn plans acceptable if dimensionally accurate and legible; computer-generated plans preferred by most departments.

Elevation Drawings: Front, side, and rear views showing pergola height, roof configuration (open louvers, solid roof, retractable canopy), post spacing, beam sizes, and connections to house (if attached). Drawings need not be architect-prepared for simple projects but must clearly communicate design intent and construction details.

Structural Calculations: Stamped engineering calculations by California-licensed civil or structural engineer addressing dead load, wind load per ASCE 7, seismic design per CBC Chapter 16, and foundation bearing capacity. Required for motorized louvered systems, spans >14 feet, or attached installations where connection to house creates load transfer requiring engineering analysis.

Electrical Plans (Motorized Systems): Single-line diagram showing circuit routing from main panel to pergola location, conductor sizing, conduit specifications, motor loads, and control device locations. Must demonstrate compliance with NEC Article 680 (outdoor installation requirements) including GFCI protection and weatherproof boxes.

Product Specifications: Manufacturer cut sheets for major components—aluminum extrusions, motors, controllers, lighting fixtures. These data sheets demonstrate code-compliant materials and provide building inspectors verification of approved equipment installation.

Jurisdiction-Specific Requirements:

Burbank: Online permit portal (https://aca.burbank ca.gov) enables complete electronic application submission. Digital plan upload in PDF format, online fee payment, real-time application status tracking. Plan review comments communicated via email requiring online resubmittal of corrected documents. Most efficient process among LA County jurisdictions for tech-comfortable contractors and homeowners.

Glendale: Requires in-person application submission at Community Development Department (633 E. Broadway, 1st Floor). Two complete plan sets (one retained by department, one returned with approval stamps), printed fee payment check, and signed property owner authorization. Plan review corrections require in-person consultation with plan checker—less convenient than Burbank's system but enables direct clarification of issues avoiding multiple revision cycles.

Pasadena: Standard permits follow online or in-person submission process similar to Burbank/Glendale. Historic district properties require preliminary Design Review process before permit application—submit concept drawings and photographs to Historic Preservation staff, receive approval with or without modifications (30-45 day process), then proceed to standard permit application incorporating approved design. This two-stage process adds substantial timeline but preserves architectural character in designated historic neighborhoods.

According to CSLB guidelines, homeowners can apply for their own permits when acting as owner-builder but assume full responsibility for code compliance, construction quality, and contractor oversight. Most homeowners hiring professional contractors delegate permit applications to contractors who possess technical expertise, established department relationships, and experience navigating correction cycles—justifying contractor markup on permit costs (typically 10-15% of permit fees).

Review Process & Approval Timelines

Permit review progresses through multiple building department divisions—zoning compliance, structural engineering, fire department (for attached installations), and potentially historical preservation—with each division approving or requesting corrections before final permit issuance.

Initial Submittal Review (5-15 days): Plan checker evaluates application completeness—are all required documents present, properly formatted, signed, and fee paid? Incomplete applications rejected immediately requesting missing elements. Complete applications proceed to technical review.

Technical Review (7-20 days): Plan checker reviews structural adequacy, code compliance, zoning conformance. Simple wood pergola projects typically pass initial review (Burbank 7-10 days, Glendale 10-14 days, Pasadena 12-18 days). Complex motorized louvered systems require structural engineer review adding 3-5 days and electrical plan checker review adding 2-4 days.

Correction Cycle (Variable): Applications failing initial technical review receive correction lists via email (Burbank) or require in-person pickup (Glendale)—itemized deficiencies requiring resubmittal addressing each issue. Contractors resubmit corrected plans (typically 3-7 days after receiving corrections) triggering second review cycle (5-10 days). Major deficiencies may require multiple correction cycles—each iteration adding 1-2 weeks to timeline.

Final Approval & Issuance (1-3 days): Applications passing all technical reviews receive final approval. Burbank issues electronic permits immediately; Glendale/Pasadena require in-person pickup. Permit cards posted at construction site enabling building inspector verification during scheduled inspections.

Typical Timeline Examples (First-Time Approval):

12×14 ft Wood Pergola, Burbank: Online submission Monday → Completeness check Tuesday → Technical review 8 days → Approval following Tuesday → 12 business day total

14×16 ft Aluminum Louvered Pergola, Glendale: In-person submission Monday → Completeness check 2 days → Structural review 12 days → Approval following Monday → 16 business days total

16×20 ft Motorized Louvered Pergola, Pasadena (Non-Historic): Online submission Monday → Completeness check 3 days → Structural review 10 days → Electrical review 5 days (parallel) → Approval following Friday → 20 business days total

14×16 ft Aluminum Pergola, Pasadena Historic District: Design Review submission (30 days) → Design approval → Permit application → Completeness check 3 days → Structural review 12 days → Approval → 48 business days total from initial submission

These timelines assume complete, accurate initial submittals. Correction cycles add 2-4 weeks per iteration. Pergola Cave's 95%+ first-time approval rate stems from 10+ years local experience understanding each jurisdiction's specific documentation preferences, plan checker expectations, and common approval issues—institutional knowledge unavailable to contractors working first Burbank/Glendale/Pasadena project.

Foundation Construction & Structural Assembly

Physical installation begins with foundation excavation and concrete placement establishing stable base supporting pergola structure. Foundation quality determines long-term structural integrity—shortcuts during this phase create problems manifesting years later as settlement, leaning posts, or cracking requiring expensive remediation.

Foundation Excavation & Footing Installation

Pergola foundations consist of concrete-filled post holes (sonotube or formed footing) or slab-on-grade construction depending on soil conditions, structure size, and budget constraints.

Post Hole Foundations (Most Common): Excavate cylindrical holes 18-24 inch diameter extending to required depth (24-42 inches in Los Angeles area depending on soil conditions). Install cardboard sonotube forms maintaining hole walls during concrete placement, or leave earth walls as form in stable soils.

Depth Requirements:

Stable Soils (Minimal Expansiveness): 24-30 inch depth, 18-inch diameter adequate for typical residential pergolas. Concrete footing extends 6-8 inches below grade with post anchor embedded in concrete and extending above grade for wood or steel post connection.

Expansive Clay Soils (Burbank/Glendale Valleys): 36-42 inch depth below active zone, 20-24 inch diameter distributing loads over larger area reducing bearing pressure. Deeper footings increase concrete volume and excavation labor—cost premium $200-400 per footing versus shallow footings but prevents seasonal movement damage.

Hillside/Collapsible Soils: Geotechnical engineer specifies footing design based on site-specific investigation. Typical recommendations: 48-60 inch depth, 24-30 inch diameter, #4 rebar cage (4-6 vertical bars with horizontal ties every 12 inches) reinforcing concrete against tension loads from lateral forces. Cost: $400-700 per footing for materials and labor.

Reinforcement Installation: Code-compliant footings require steel reinforcement preventing concrete cracking under tensile loads. Minimum reinforcement: two #4 rebar vertical bars full footing depth, connected by horizontal ties. Premium installations use 4-6 vertical bars creating cage structure providing lateral stability in addition to vertical reinforcement.

Anchor Bolt Placement: Galvanized steel post anchors embed in concrete while still plastic, positioning bolt centerline at exact post location with vertical alignment critical for proper structure assembly. Misaligned anchors create construction difficulties requiring shimming or grinding correcting position—these field corrections introduce weaknesses and poor aesthetics.

Professional concrete contractors use laser levels and template jigs ensuring bolt placement accuracy within ±1/4 inch horizontally and ±1/2° vertically. This precision enables direct post mounting without field modifications—hallmark of quality installation versus DIY or inexperienced contractor work requiring extensive fitting.

Concrete Placement & Curing: Place 3,000 psi concrete minimum—typical residential mix adequate for outdoor applications. Higher strength (4,000-5,000 psi) optional but offers no practical benefit for pergola loading. Vibrate or rod concrete removing air pockets ensuring full sonotube fill and complete anchor embedment.

Curing Requirements: Concrete achieves 70% design strength after 7 days, 90% after 28 days. Building codes require minimum 7-day cure before loading, but practical construction schedules often wait only 3-4 days before proceeding to frame assembly—acceptable for light pergola loads but risky for heavier motorized systems. Conservative practice waits full 7 days ensuring adequate concrete strength before imposing structural loads.

Structural Frame Assembly

Frame assembly sequence progresses logically from foundation upward—posts, beams, rafters, then finish materials and optional motorization systems. Proper sequencing and careful alignment during assembly determines final structure quality and operational smoothness (critical for motorized louver systems requiring tight tolerances).

Post Installation (Day 1 After Concrete Cure):

Wood Posts: 6×6 or 4×6 pressure-treated or cedar posts mount to anchor brackets via lag bolts or through-bolts. Verify post plumb (vertical alignment) in both directions before tightening fasteners—out-of-plumb posts create cumulative misalignment manifesting as beam/rafter fitting difficulties. Acceptable tolerance: ±1/4 inch deviation over 10-foot post height (±0.25% out-of-plumb).

Aluminum Posts: Heavy-gauge extruded posts (typically 5-6 inch square or rectangular profiles) with internal reinforcement for motor mounting and gutter integration. Aluminum installation requires precision—post alignment within ±2mm (0.080 inch) necessary for proper louver panel operation. Laser level verification mandatory at each post before proceeding to beam installation.

Beam Installation (Day 1-2): Primary beams span between posts supporting rafters or louver panels. Wood beams use dimensional lumber (2×10, 2×12) or laminated beams for spans >16 feet. Aluminum beams use extruded channels with integrated water management and wiring pathways (for motorized systems).

Connection Details: Beam-to-post connections use Simpson Strong-Tie or equivalent metal hardware ensuring structural load transfer. Simple saddle brackets adequate for light wood pergolas; through-bolted connections required for louvered systems experiencing torsional loads from louver operation. Structural calculations specify connection hardware based on load analysis—substituting different hardware voids engineering approval risking inspection failure.

Rafter/Louver Installation (Day 2-3):

Wood Pergola Rafters: 2×6 or 2×8 dimensional lumber spanning between beams creating shade pattern. Rafter spacing 16-24 inches on-center balancing shade density with visual lightness. Attach using joist hangers or toe-screw connections depending on design complexity and structural requirements.

Louvered Roof Systems: Aluminum louver panels install on pivot assemblies enabling rotation from fully open (sunlight and rain ingress) to closed (weather protection). Critical installation elements:

Louver Panel Spacing: Panels must parallel each other within ±2mm (0.080 inch) across full span—misalignment creates binding when motors attempt rotation. Premium contractors use laser measurement verifying each panel position before final fastening.

Pivot Bushing Installation: Bronze, stainless steel, or composite bushings support louver rotation. Proper bushing installation (clean holes, correct alignment, adequate lubrication) determines years of smooth operation versus premature binding requiring bushing replacement. Quality check: manually rotate each louver panel verifying smooth motion without binding or resistance.

Drive Linkage Connection: Link louver panels to motor drive via mechanical linkages (for linear actuators) or gear assemblies (for rack-and-pinion systems). Linkage alignment critical—misalignment creates differential forces binding system or causing premature wear. Professional installation includes load testing—operating system through 10-20 complete open/close cycles verifying smooth operation before final acceptance.

Pergola Cave structural assembly employs aluminum fabrication specialists trained on louvered system installation—distinct skillset from general carpentry. Our teams complete full louver alignment verification before motor installation preventing discovery of alignment issues after motorization complicates correction access.

Electrical Integration & Automation

Motorized pergola systems require professional electrical installation by California C-10 licensed electricians ensuring code compliance, safety, and reliable operation. Electrical work represents 15-20% of total motorized pergola costs—attempting DIY electrical or using unlicensed contractors voids motor warranties, creates safety hazards, and causes inspection failures requiring expensive remediation.

Circuit Design & Power Distribution

Motorized pergolas require dedicated 120V or 24V DC circuits (depending on motor specifications) from main electrical panel or convenient subpanel to pergola location. Circuit design accounts for voltage drop over distance, motor inrush current, and future expansion possibilities.

Voltage Drop Calculations: Long circuit runs (>50 feet common for freestanding pergolas distant from house) create voltage drop reducing motor-available voltage below rated input causing overheating and premature failure. NEC Section 210.19 recommends limiting voltage drop to 3% on branch circuits.

Example Calculation: 100-foot circuit (50 feet each direction) supplying four 24V DC motors drawing 5 amps combined requires conductor sizing preventing >3% voltage drop (0.72V on 24V system). Using NEC voltage drop formula and copper conductor resistivity, calculation yields minimum #10 AWG copper wire. Using smaller #12 or #14 wire (common residential wiring) creates 5-7% voltage drop causing motor problems.

Professional electricians perform these calculations ensuring adequate conductor sizing. DIY electrical frequently uses undersized wiring creating operational problems manifesting immediately or months later as motors fail from voltage-starved operation.

Motor Loads & Circuit Protection: Each motor circuit requires overcurrent protection (circuit breaker) and ground-fault protection (GFCI) per NEC outdoor installation requirements. Breaker sizing accounts for motor inrush current (typically 3-5× running current during startup)—inadequate breaker size causes nuisance tripping during operation.

Circuit Protection Example: Four linear actuators each drawing 4 amps running current operate on single circuit. Running load: 16 amps. Inrush current (4× running): 64 amps momentary. Circuit breaker must tolerate 64-amp inrush without tripping while protecting against sustained overload. Proper sizing: 20-amp breaker with magnetic trip delay tolerating inrush but protecting against sustained overcurrent. Using 15-amp breaker creates operational problems; using 30-amp breaker provides insufficient overload protection.

Conduit & Wiring Methods: Outdoor wiring requires protection from UV exposure, mechanical damage, and moisture infiltration. NEC Article 680 specifies approved wiring methods for outdoor installations:

Rigid Metal Conduit (RMC): Galvanized steel pipe providing maximum mechanical protection and grounding path. Premium choice for exposed runs vulnerable to impact but expensive ($8-12 per linear foot installed) and heavy requiring support every 6-8 feet.

PVC Schedule 40 Conduit: Plastic pipe immune to corrosion, lighter weight than metal, economical ($3-5 per linear foot installed). Requires separate equipment grounding conductor since PVC provides no grounding path. Most common outdoor conduit for residential applications balancing cost and protection.

Direct Burial Cable (UF-B): Underground feeder cable rated for direct earth burial without conduit. Buried 18-24 inches deep (per NEC Table 300.5) avoiding expensive trenching and conduit. Vulnerable to damage from future digging—commonly damaged by landscaping, fence installation, or utility work years after installation creating difficult troubleshooting.

Pergola Cave electrical installations use PVC conduit for exposed runs and direct burial UF-B cable for underground sections—combination approach balancing cost, protection, and future serviceability. We install tracer wire alongside buried cables enabling future location using metal detectors preventing accidental damage during landscaping.
